R162253210

BALL RUNNER BLOCK CARBON STEEL KWC-055-SNS-C3-P-2

Manufacturer: Bosch Rexroth

Material #: R162253210

Model : B.RUNNER BLOCK CS KWC-055-SNS-C3-P-2


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

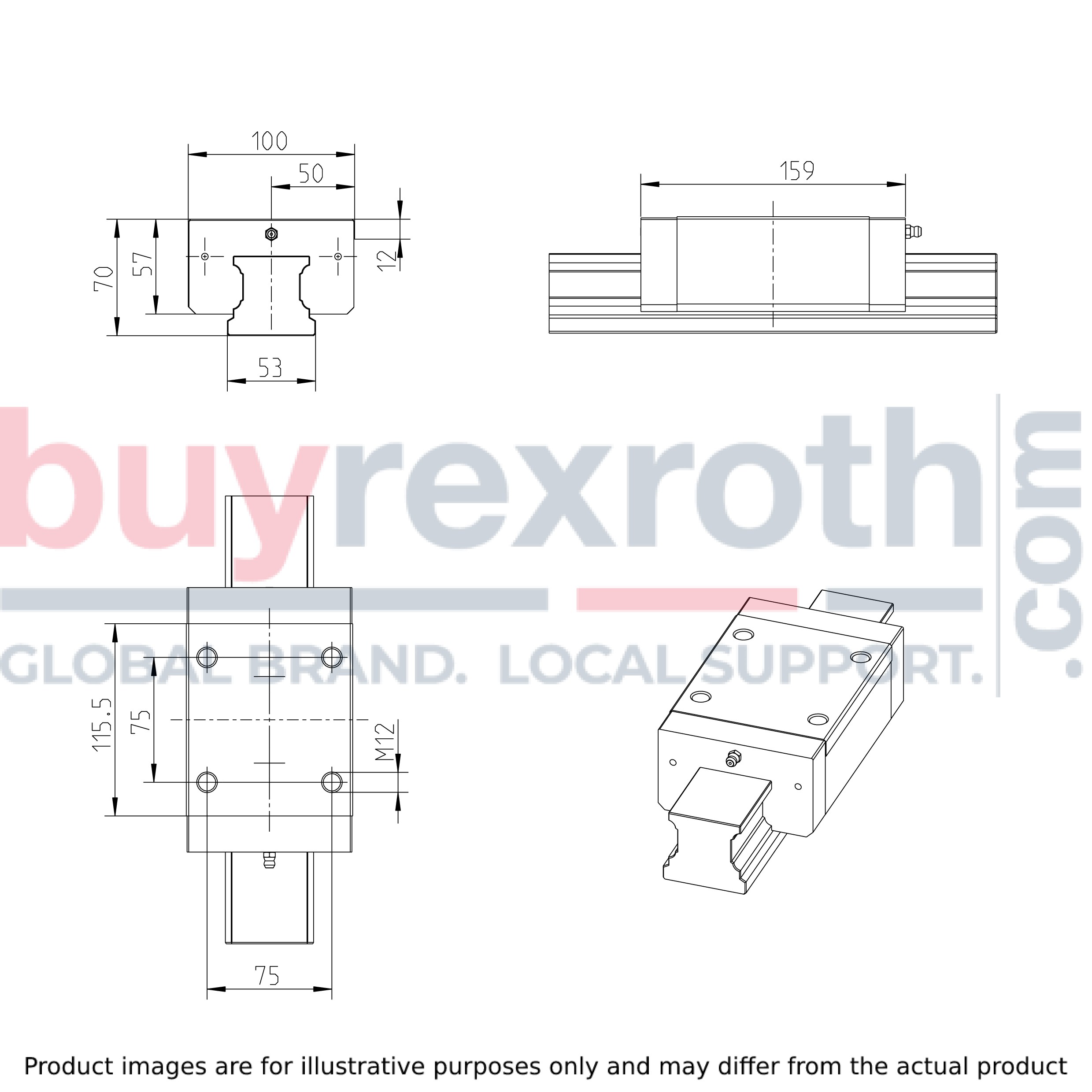

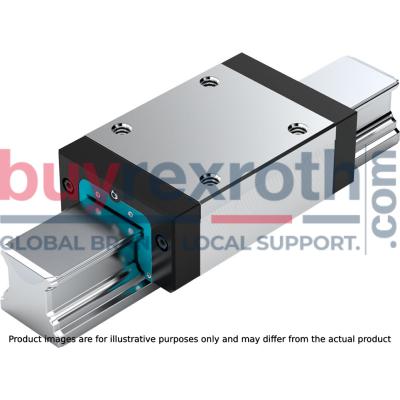

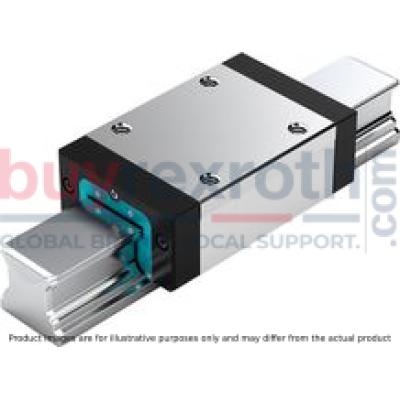

The Bosch Rexroth B.RUNNER BLOCK CS KWC-055-SNS-C3-P-2 (R162253210) is a high-precision ball runner block designed for linear motion applications requiring compactness, high load-bearing capacity, and precision. This runner block features a slimline width, standard height, and normal length (SNS format), constructed from unalloyed steel CS for durability. It is classified under preload class C, indicating a high preload for increased rigidity and load capacity, and accuracy class P for precision applications. The B.RUNNER BLOCK CS is notable for its ability to handle heavy-duty tasks in machine construction due to its exceptional load-bearing capacity in all four main loading directions and its capability to withstand high torque loads. It operates with low noise levels and provides smooth travel behavior. The product is designed without a ball chain and does not come with initial lubrication or attachment elements. It supports various mounting options with endface fastening threads and allows for long-term lubrication over extended periods. The runner block body's standard version has an overall length of . mm. One of the key benefits of this runner block is its interchangeability feature, which enables it to be combined with guide rails of every accuracy level. This Bosch Rexroth runner block can be used in environments where space is limited in the transverse direction while maintaining high rigidity in all load directions. This characteristic makes it possible to use just one runner block per rail in certain applications. Additionally, the product comes with angular lube nipples loosely attached for convenient maintenance. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWC-055-SNS-C3-P-2 offers a robust solution for linear motion systems where precision, rigidity, and heavy-load capacity are essential. Its design caters to various industrial applications that demand reliable performance even under challenging conditions.

$581.69 USD

More are expected on January 28, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as January 28, 2025 when ordered in
