BALL RUNNER BLOCK CARBON STEEL KWC-055-SNS-C1-H-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

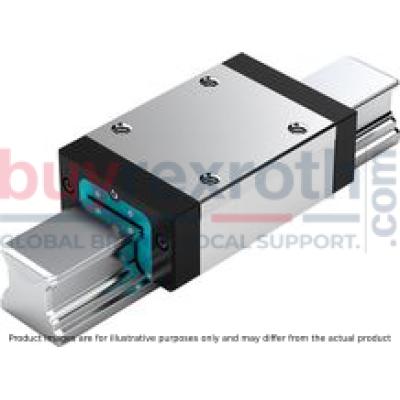

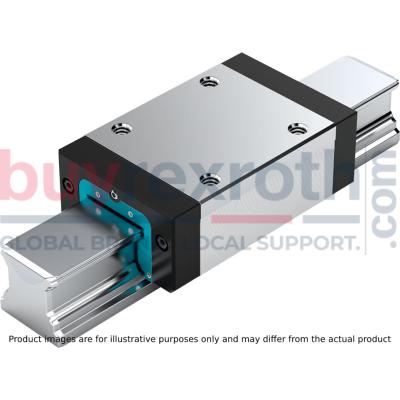

The Bosch Rexroth B.RUNNER BLOCK CS KWC-055-SNS-C1-H-2 (R162251310) is a high-precision ball runner block designed for heavy-duty applications requiring high load-bearing capacity and exceptional rigidity. This component is part of the Ball Rail Systems product group and is crafted from unalloyed steel CS, offering a slimline width, standard height, and normal length that make it suitable for spaces with limited transverse room. The runner block features a low preload class C, ensuring smooth movement with minimal resistance, while the high accuracy class H guarantees precise operation. It is designed without a ball chain and does not include initial lubrication or attachment elements on either front reference edge. However, angular lube nipples are loosely attached to facilitate easy maintenance. With an overall length of . mm, the B.RUNNER BLOCK CS can be combined with guide rails of every accuracy level for flexible installation options. The product boasts high load ratings in all four main loading directions and can operate quietly with excellent travel behavior. It also includes end-face fastening threads for various attachments. Long-term lubrication over several years is possible with this runner block, which can withstand ambient temperatures ranging from min ... max °C (short-term exposure). The dynamic load capacity C and static load rating C0 are determined based on DIN ISO standards, ensuring reliable performance under dynamic conditions. This Bosch Rexroth runner block is compatible with all SNS ball guide rails and offers self-aligning capabilities to compensate for any misalignments during installation or operation. It's constructed to handle maximum accelerations and speeds while maintaining low friction coefficients for efficient functioning. Seals such as the standard SS seal protect against contaminants like dirt, chips, and coolants—extending the service life of the runner block. For specific environmental conditions or additional protection requirements, various seals such as LS (low-friction), DS (double-lip), FKM (for extreme environments), or front seals are available as accessories. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWC-055-SNS-C1-H-2 (R162251310) offers robust performance for demanding applications through its durable construction, precision engineering, and versatile design features that accommodate long-term use in challenging industrial settings.
