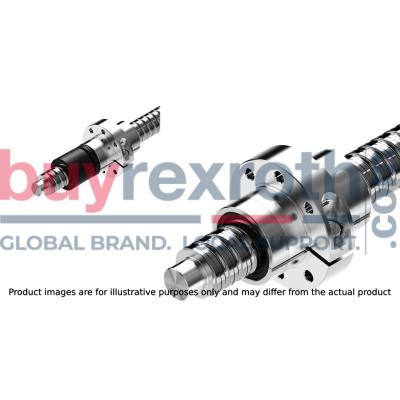

BALL NUT SEM-E-S 20X20RX3,5-2

Manufacturer: Bosch Rexroth

Material #: R151217014

Model : SEM-E-S 20X20RX3,5-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SEM-E-S 20X20RX35-2 (R151217014) is an adjustable preload single nut designed for high-precision ball screw assemblies. It is part of the Standard series and features a nominal diameter of 20 mm with a lead of right-hand direction. The SEM-E-S 20X20RX35-2 is engineered with Rexroth connection dimensions, incorporating seals and offering the possibility of a left-hand version in certain applications. This nut type falls under the SEMES zero-clearance adjustable single nut category, ensuring minimal axial play for applications requiring high accuracy. With a tolerance grade of T, this product is optimized for dynamic load capacities in accordance with tolerance grades T3 and T5. Users should refer to correction factors for other tolerance grades as specified in the technical notes provided by Bosch Rexroth. The SEM-E-S 20X20RX35-2 can withstand operating temperatures ranging from -10°C to +80°C, allowing for continuous operation at temperatures up to 80°C and temporary peaks up to 100°C as measured on the nut's outer shell. This ball screw assembly nut boasts an impressive static load rating and dynamic load capacity, making it suitable for various demanding applications where precise linear movement is critical. Its design accommodates maximum permissible linear speeds, and its construction allows it to operate effectively within its specified temperature range without compromising performance. The SEM-E-S 20X20RX35-2 has a weight specification that contributes to its overall efficiency and suitability for different environments where mass plays a role in design considerations. Its size specifications include a length parameter L, which integrates seamlessly into systems requiring this particular dimension. Overall, this Bosch Rexroth ball screw assembly nut exemplifies precision engineering designed to meet stringent requirements in linear motion control applications.

$670.15 USD

More are expected on December 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 19, 2024 when ordered in

BALL NUT SEM-E-S 20X20RX3,5-2

Adjustable-preload single nut SEM-E-S, size 20 x 20R x 3.5 - 2

Adjustable-preload single nut SEM-E-S with standard seal and standard axial clearance
Nominal diameter d0 = 20
Lead P = 20 (right)
Ball diameter Dw = 3.5
Number of ball track turns i = 2

Unpacked Weight: 0.677 kg

Product overview

Rexroth connection dimensions
With seals
With left-hand version in some cases
Adjustable preload
Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size D5	63
Size L with tolerance	57 mm
Bearing temperature max	+80
Series	Standard series
Bearing temperature min	-15
Nut or screw	Screw drive nut
Maximum operating temperature	+80
Footnote dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Bearing temperature	-15 °C ... +80 °C
Category	B
Minimum operating temperature	-10
Size L4	18.5
Size D6	50
Size D1 f9	38
Size D1 min	37.945
Size L3	20
Size L10	18.5
Size D1 max	37.973
Operating temperature	-10 °C ... +80 °C
Maximum permissible linear speed vmax (m/min)	120
Direction of lead	Right
Lead	20
Footnote static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Size L5	18.5
Static load rating C0	12100
Note: Maximum permissible speed vmax	See "Characteristic speed d₀• n" (section Technical notes) and "Critical speed n_cr" (section Calculation and examples)
Nut type	SEM-E-S zero-clearance adjustable single nut
Productgroup ID	17
Screw drive version (drive type)	Ball screw assembly
Size D7	6.6
Angle φ	60
Hole pattern	BB7
Size Sx	4
Footnote permissible operating temperature (min...max)	Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Dynamic load capacity C	10900
Size d1	19
Size L	57
Size d2	16.7
Footnote operating temperature max.	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Weight	0.677
Nominal size	20 x 20R x 3,5 - 2

Technical data for nuts

Size	C	C0	vmax	Mass
d0 x P x Dw - i	N	N	m/min	kg
16 x 5R x 3 - 4	14800 1)	16100 1)	30 2)	0.24
16 x 10R x 3 - 3	11500 1)	12300 1)	60 2)	0.25
16 x 16R x 3 - 2	7560 1)	7600 1)	96 2)	0.42
20 x 5R x 3 - 4	17200 1)	21500 1)	30 2)	0.31
20 x 20R x 3,5 - 2	10900 1)	12100 1)	120 2)	0.63
25 x 5R x 3 - 4	19100 1)	27200 1)	30 2)	0.44
25 x 10R x 3 - 4	18800 1)	27000 1)	60 2)	0.53
25 x 25R x 3,5 - 2	12100 1)	15100 1)	150 2)	1.13
32 x 5R x 3,5 - 4	25900 1)	40000 1)	23 2)	0.64
32 x 10R x 3,969 - 5	38000 1)	58300 1)	47 2)	0.87
32 x 20R x 3,969 - 2	16200 1)	21800 1)	94 2)	1.14
32 x 32R x 3,969 - 2	16100 1)	22000 1)	150 2)	1.44
40 x 5R x 3,5 - 5	34900 1)	64100 1)	19 2)	0.87
40 x 10R x 6 - 4	60000 1)	86400 1)	38 2)	1.53
40 x 20R x 6 - 3	45500 1)	62800 1)	75 2)	1.77
40 x 40R x 6 - 2	30600 1)	40300 1)	150 2)	3.77
50 x 5R x 3,5 - 5	38400 1)	81300 1)	15 2)	1.23
50 x 10R x 6 - 6	95600 1)	166500 1)	30 2)	2.44
50 x 20R x 6,5 - 3	57500 1)	87900 1)	60 2)	3.94
50 x 40R x 6,5 - 2	38500 1)	55800 1)	120 2)	4.42
63 x 10R x 6 - 6	106600 1)	214300 1)	24 2)	2.94
63 x 20R x 6,5 - 3	63800 1)	112100 1)	48 2)	4.45
63 x 40R x 6,5 - 2	44300 1)	74300 1)	95 2)	4.95
80 x 10R x 6,5 - 6	130100 1)	291700 1)	19 2)	4.2
80 x 20R x 12,7 - 6	315200 1)	534200 1)	30 2)	13.3
16 x 5L x 3 - 4	14800 1)	16100 1)		0.24
20 x 5L x 3 - 4	17200 1)	21500 1)		0.31
25 x 5L x 3 - 4	19100 1)	27200 1)		0.44
32 x 5L x 3,5 - 4	25900 1)	40000 1)	23 2)	0.64
40 x 5L x 3,5 - 5	34900 1)	64100 1)	19 2)	0.87
40 x 10L x 6 - 4	60000 1)	86400 1)	38 2)	1.53

1)	The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
2)	See "characteristic speed d0 • n" (section Technical notes) and "critical speed n"cr" (section Calculation and examples)

Operating conditions

Size	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
d0 x P x Dw - i	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
16 x 5R x 3 - 4	-10 °C ... +80 °C	-15 °C ... +80 °C
16 x 10R x 3 - 3
16 x 16R x 3 - 2
20 x 5R x 3 - 4
20 x 20R x 3,5 - 2
25 x 5R x 3 - 4
25 x 10R x 3 - 4
25 x 25R x 3,5 - 2
32 x 5R x 3,5 - 4
32 x 10R x 3,969 - 5
32 x 20R x 3,969 - 2
32 x 32R x 3,969 - 2
40 x 5R x 3,5 - 5
40 x 10R x 6 - 4
40 x 20R x 6 - 3
40 x 40R x 6 - 2
50 x 5R x 3,5 - 5
50 x 10R x 6 - 6
50 x 20R x 6,5 - 3
50 x 40R x 6,5 - 2
63 x 10R x 6 - 6
63 x 20R x 6,5 - 3
63 x 40R x 6,5 - 2
80 x 10R x 6,5 - 6
80 x 20R x 12,7 - 6
16 x 5L x 3 - 4
20 x 5L x 3 - 4
25 x 5L x 3 - 4
32 x 5L x 3,5 - 4
40 x 5L x 3,5 - 5
40 x 10L x 6 - 4

1)	Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut).

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand, L = left-hand)
Dw	Ball diameter	mm
i	Number of ball track turns
C	Dynamic load capacity	N
C0	Static load capacity	N
vmax	Maximum permissible speed	m/min

Technical notes

1)	Lube port at flange center (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm; for size 8 x 2.5 a DIN 3405 funnel-type lube nipple is provided.)
2)	right
3)	left
4)	Nut rework: Axial lube port

Dimensions

Size	D1 min	D1 max	d1	d2	D1	D5	Hole pattern	D6	D7	L	L3	L4	L5	L10	S 1)	Sx	φ
d0 x P x Dw - i	D1 min	D1 max	d1	d2	f9	D5	Hole pattern	D6	D7	L	L3	L4	L5	L10	S 1)	Sx	φ
d0 x P x Dw - i	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	°
16 x 5R x 3 - 4	27.94	27.975	15	12.9	28	53	BB7	40	6.6	38	15	10	11.5	11.5	M6	4	53
16 x 10R x 3 - 3	27.94	27.975			28	53		40		45		15	15	15			180
16 x 16R x 3 - 2	32.945	32.973			33	58		45		45		15	15	15			50
20 x 5R x 3 - 4	32.935	32.97	19	16.9	33	58		45		40		10	12.5	12.5			56
20 x 20R x 3,5 - 2	37.945	37.973	19	16.7	38	63		50		57	20	18.5	18.5	18.5			60
25 x 5R x 3 - 4	37.935	37.97	24	21.9						45		10	12.5	12.5
25 x 10R x 3 - 4	37.935	37.97		21.9						64		16	22	22
25 x 25R x 3,5 - 2	47.945	47.973		21.4	48	73		60		70	25	22.5	22.5	22.5			48
32 x 5R x 3,5 - 4	47.935	47.97	31	28.4						48	20	10	14	14			60
32 x 10R x 3,969 - 5	47.935	47.97		27.9						77		16	28.5	28.5			168
32 x 20R x 3,969 - 2	55.941	55.969			56	80		68		64		22	22	22			60
32 x 32R x 3,969 - 2	55.941	55.969								88		34	34	34			60
40 x 5R x 3,5 - 5	55.931	55.966	39	36.4						54		10	17	17	M8x1	5	65
40 x 10R x 6 - 4	62.931	62.966	38	33.8	63	95		78	9	70	25	16	22.5	22.5			57
40 x 20R x 6 - 3	62.941	62.969			63	95		78	9	88	25	25	31.5	31.5			180
40 x 40R x 6 - 2	71.941	71.969			72	110		90	11	102	40	31	31	31			49
50 x 5R x 3,5 - 5	67.931	67.966	49	46.4	68	98		82	9	54	25	10	14.5	14.5			67
50 x 10R x 6 - 6	71.931	71.966	48	43.8	72	110		90	11	90	30	16	30	30			61
50 x 20R x 6,5 - 3	84.936	84.964		43.3	85	125		105		92		25	31	31			180
50 x 40R x 6,5 - 2	84.936	84.964		43.3						109		39.5	39.5	39.5			60
63 x 10R x 6 - 6	84.926	84.961	61	56.8						90		16	30	30			65
63 x 20R x 6,5 - 3	94.936	94.964		56.3	95	140		118	14	92		25	31	31			190
63 x 40R x 6,5 - 2	94.936	94.964		56.3	95	140		118		109		39.5	39.5	39.5			70
80 x 10R x 6,5 - 6	104.926	104.961	78	73.3	105	150		125		95		16	32.5	32.5			67
80 x 20R x 12,7 - 6	124.931	124.959	76	67	125	180		152	18	170	50	25	60	60			60
16 x 5L x 3 - 4	27.94	27.975	15	12.9	28	53		40	6.6	38	15	10	11.5	11.5	M6		53
20 x 5L x 3 - 4	32.935	32.97	19	16.9	33	58		45		40	15		12.5	12.5			56
25 x 5L x 3 - 4	37.935	37.97	24	21.9	38	63		50		45	20		12.5	12.5			60
32 x 5L x 3,5 - 4	47.935	47.97	31	28.4	48	73		60		48			14	14			59
40 x 5L x 3,5 - 5	55.931	55.966	39	36.4	56	80		68		54			17	17	M8x1		65
40 x 10L x 6 - 4	62.931	62.966	38	33.8	63	95		78	9	70	25	16	22.5	22.5	M8x1		57

1)	Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm; for size 8 x 2.5 a DIN 3405 funnel-type lube nipple is provided.

Legend

Symbol	Description
d0	Nominal diameter
P	Lead (R = right-hand, L = left-hand)
Dw	Ball diameter
i	Number of ball track turns

Calculation

Installation

Attention: When setting up applications, do not allow components to collide with the front lube unit.

Lubrication

Nut housing MGS

Steel nut housings MGS are designed for FEM-E-S, FDM-E-S, FEP-E-S and SEM-E-S nuts.

Catalog

Service

CAD data

Directives and standards

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.
