SHAFT SUPPORT RAIL WU20-AS1-600

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

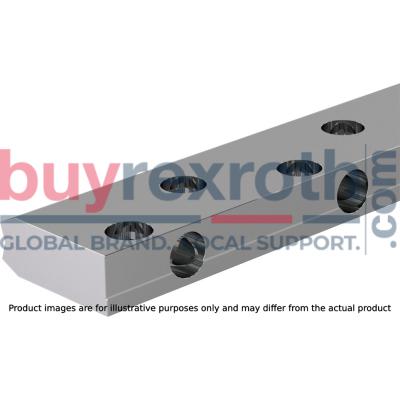

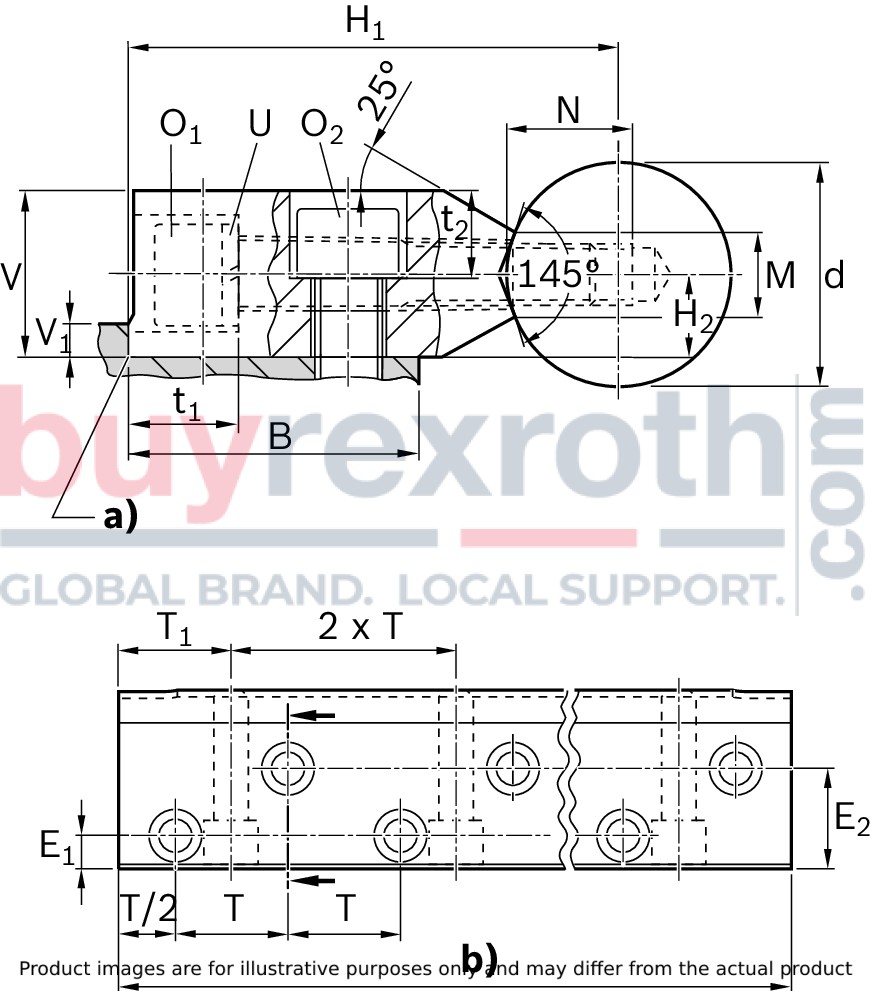

The Bosch Rexroth SHAFT SUPPORT RAIL WU20-AS1-600 (R105412000) is a high-quality shaft support rail designed for enhancing the performance of linear motion systems. This model is crafted from aluminum and is intended for side mounting with a standard bore spacing type. The support rail material's aluminum composition ensures both strength and lightweight properties, making it suitable for various applications. Its compatibility with linear sets that have side openings allows it to be used in heavy-duty linear guides, providing additional support where long guides or high loads are present, and self-supporting shafts are not viable due to potential warping. The design includes a reference edge which facilitates easier alignment during installation, thus ensuring precision in set-up. This product is engineered to offer additional degrees of freedom in the circumferential direction when compared to profiled guide rails. It addresses challenges such as warping caused by imprecise substructures that can affect other types of linear guides. Its versatility allows it to be used in unlimited lengths by interconnecting shafts, catering to the needs of various requirements. The Bosch Rexroth SHAFT SUPPORT RAIL WU20-AS1-600 is part of a product group identified as Size V and comes under Size E classification with regard to bore spacing type. The length (L) adheres to the standard lengths provided in relevant tables, ensuring compatibility with many setups. It is designed for use with open linear bushings and specifically pairs well with precision steel shafts that include shaft support rails. In summary, this model offers a robust solution for supporting heavy loads and long guides in linear motion systems while preventing shaft warping and maintaining precise alignment due to its well-thought-out design features and durable material construction.
