TOLERANCE RING BN45X10

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

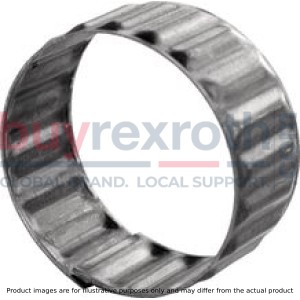

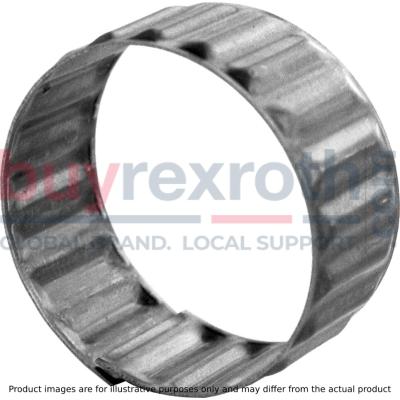

The Bosch Rexroth TOLERANCE RING BN45X10 (R082004501) is a specialized mechanical component designed for creating secure connections between machine parts. This tolerance ring is crafted from carbon steel, ensuring high durability and resistance to various types of chemical stress. It features circumferential flat edges that lie on the inner diameter, making it suitable for use with a unit bore system. The BN45X10 model is characterized by its ability to compensate for differences in thermal expansion across different materials, thus eliminating the need for keyways or other positive-locking connections. The design of the connecting parts remains simple due to the presence of this tolerance ring, which also boasts high temperature stability—capable of continuous operation at temperatures up to 100°C and brief peaks even higher. Its installation process is quick and economical, contributing to its reputation as an extremely low-cost machine element. Additionally, the BN45X10 offers a large tolerance zone with connecting parts, ensuring a fixed and secure connection. Bosch Rexroth's tolerance ring has a nominal size of 45mm in diameter (d) by 10mm in width (b), providing a substantial transferable torque capacity as indicated in the product's technical notes. The permissible radial load varies depending on whether the loads are static or pulsating; consultative guidance from Bosch Rexroth is recommended for specific applications. Special sizes can be made available upon request to accommodate unique requirements. With its robust construction and versatile application capabilities, the Bosch Rexroth TOLERANCE RING BN45X10 proves itself as an essential component in mechanical assemblies where reliability and precision are paramount.
