BASE UNIT 90+ AL CURVE WHEEL

Manufacturer: Bosch Rexroth

Material #: 3842547381

Model : BASE UNIT 90+ AL CURVE WHEEL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 90+ AL CURVE WHEEL (3842547381) is an essential component for material handling applications requiring precise and efficient movement of goods through curved conveyor systems. This base unit is designed to be used in conjunction with a drive kit to create a curve wheel drive, capable of propelling a conveyor chain in circuit systems with a top-running chain design. The unit's housing is constructed from die-cast aluminum, ensuring durability and longevity, while the chain wheel is made from white PA (polyamide), offering excellent wear resistance. The ball bearings are crafted from nonrusting steel and feature seals on both sides as well as an FDA-compliant grease filling, making this unit suitable for applications that require adherence to strict hygiene standards. The BASE UNIT 90+ AL CURVE WHEEL allows for the implementation of multiple superimposed basic curve wheel units in alpine conveyors through its integrated hexagonal hollow shafts. It boasts an effective sliding rail length and actual chain length tailored to specific requirements, with additional versions available upon request through Bosch Rexroth's modification department. The product comes with all necessary fastening materials but is delivered unassembled. For optimal performance, the use of recommended accessories such as the connection kit alpine conveyor and required accessories like the drive kit curve wheel, assembly module, and slide rail are advised. This model supports all suitable chain types and can handle a maximum permissible chain tensile force as well as torque, facilitating smooth conveying operations at recommended speeds. When multiple curve wheel base units are combined, it's crucial to ensure that motor torque is evenly distributed across each level. The innovative drive concept enhances the overall functionality of conveyor systems while maintaining low noise levels during operation. It should be noted that accumulation operation should not occur until a certain distance after the curve wheel drive and that this unit must only be utilized with closed profile systems for safety and efficiency.

$597.17 USD

More are expected on December 13, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 13, 2024 when ordered in

BASE UNIT 90+ AL CURVE WHEEL

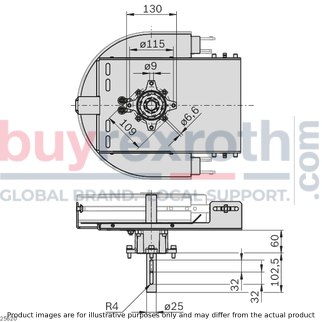

Base unit KRA AL VFplus 90

Unpacked Weight: 5.6 kg

Side elements with slot to attach holders for lateral guides, or similar

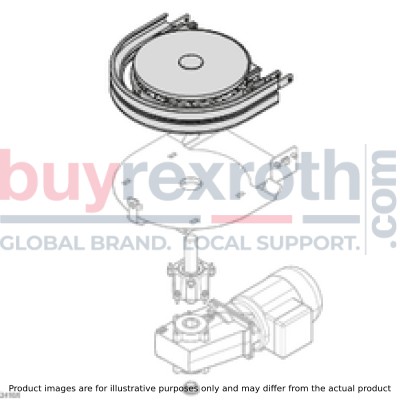

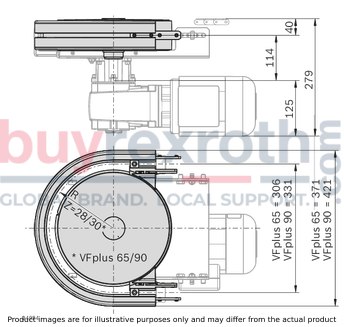

The curve wheel drive is used for driving the conveyor chain in circuit systems with a top-running chain. Combining the base unit curve wheel 180° AL with the appropriate drive kit quickly turns it into a curve wheel drive.

Size: 65 and 90 Suitable chain types: all Permissible chain tensile force: Fmax = 400 N per level, section length for closed circuits: L ≤ 10 m Permissible torque: Mmax = 60 Nm

When combining several curve wheel base units, the motor torque must be distributed across the individual levels

Conveying speed: vN = 4-21 m/min

For drives with frequency converters (FU), the speed is to be limited to a maximum of 21 m/min by a control system

Recommendation: no accumulation operation until 1000 mm after the curve wheel drive Can only be used with a closed profile

Innovative drive concept

Conveyor noise level

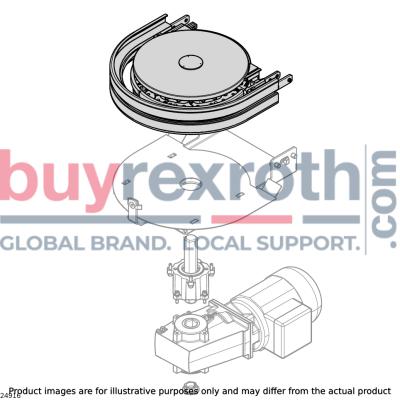

Basic unit curve wheel drive AF + drive kit curve wheel drive = curve wheel drive
Driving several superimposed basic curve wheel units (alpine conveyor) is easily implemented via the integrated hexagonal hollow shafts
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

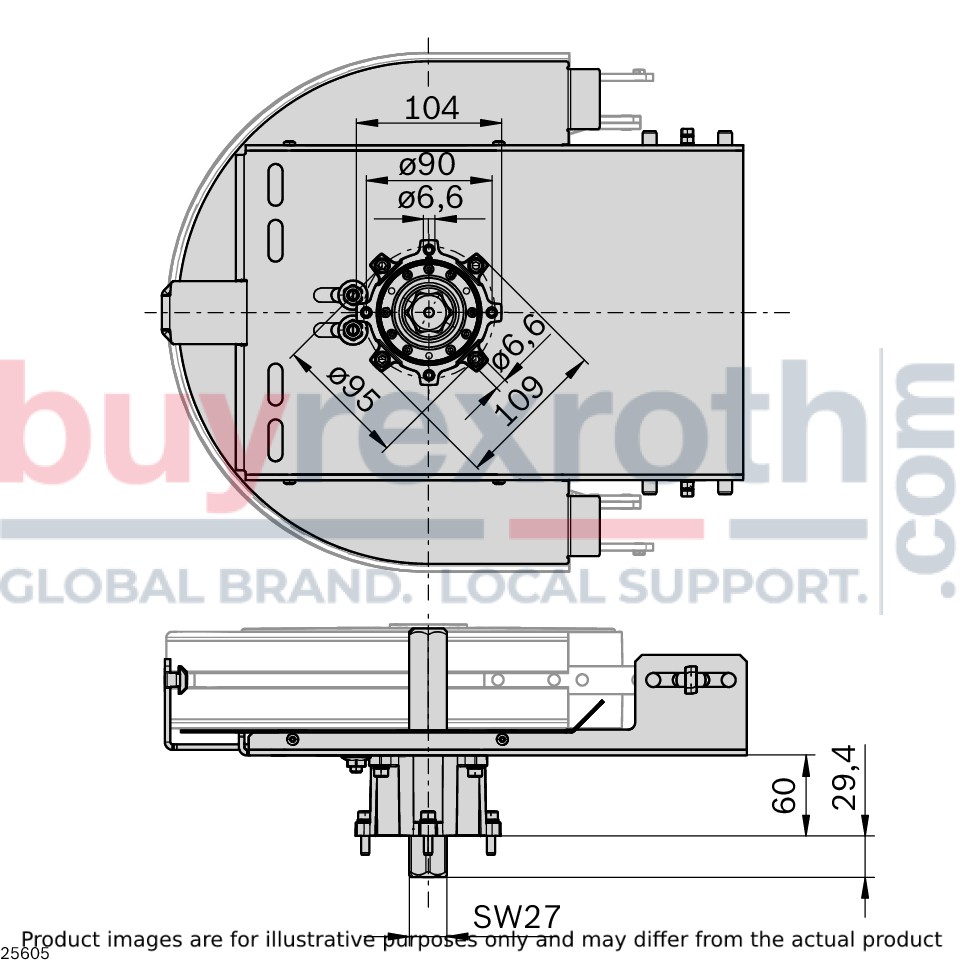

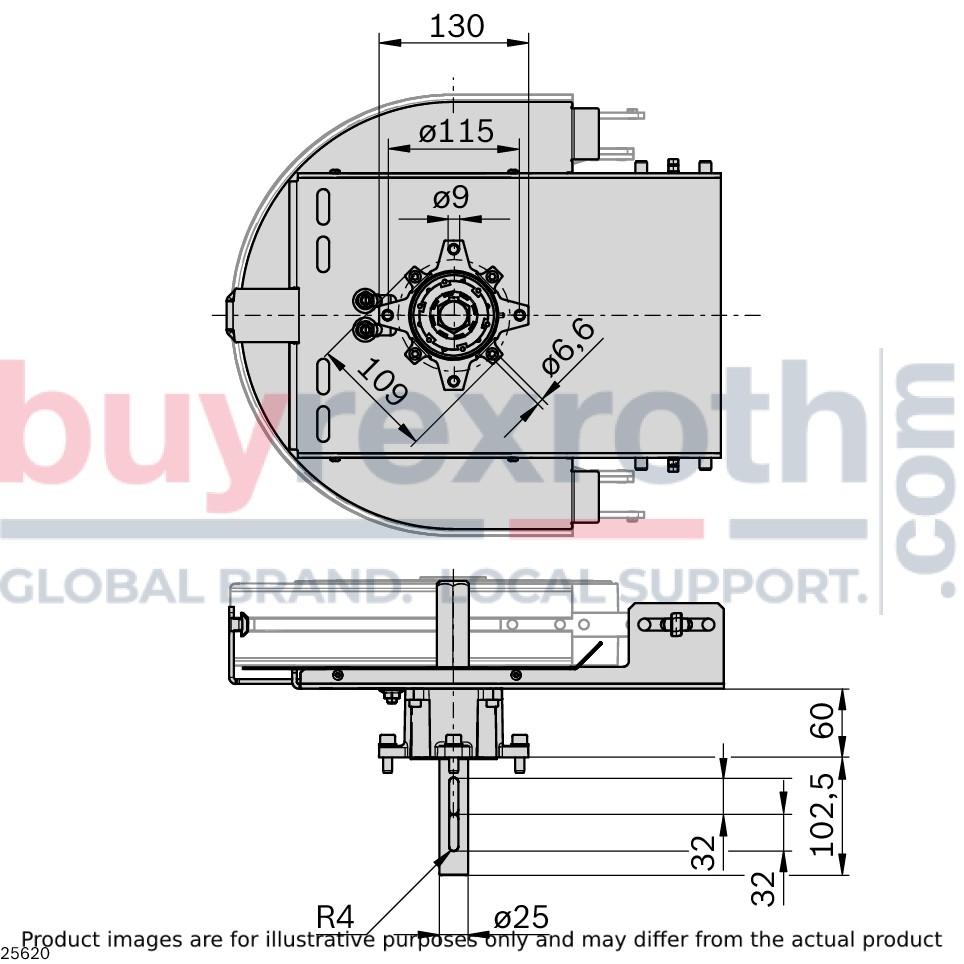

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	0,91
Actual chain length	0,72
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	5.6
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Recommended accessories	Connection kit alpine conveyor
Required accessories	Drive kit curve wheel,Assembly module,Slide rail: Length calculation,Leg set
Size [b]	90
Material information	Housing: Diecast aluminum,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

BASE UNIT 90+ AL CURVE WHEEL

Manufacturer: Bosch Rexroth

Material #: 3842547381

Model : BASE UNIT 90+ AL CURVE WHEEL

More are expected on December 13, 2024

Combination matrix

Base unit curve wheel AL

Curve wheel drive AL GM = 2

Curve wheel drive AL GM = 0

Slide rail

Slide rail

Assembly module AL

Assembly module AL

Drive kit curve wheel AL

Drive kit curve wheel AL

Connection kit alpine conveyor

Connection kit alpine conveyor

Curve wheel drive support

Curve wheel drive support
