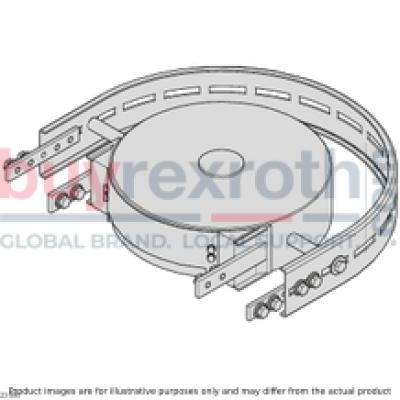

CAM WHEEL 120+ STS 180°

Manufacturer: Bosch Rexroth

Material #: 3842547122

Model : CAM WHEEL 120+ STS 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL (3842547122) is a high-quality component designed for use in conveyor systems. This curve wheel, part of the STS VFplus series, boasts an easy-to-clean design, making it ideal for applications where hygiene is paramount. It features a ball bearing constructed from non-rusting steel and includes seals on both sides along with FDA-compliant grease filling, ensuring durability and compliance with stringent health standards. The contact surfaces of the CAM WHEEL are made from FDA-compliant materials, which minimizes the risk of contamination in processes involving food or pharmaceuticals. The design eliminates any interfering contours above the chain plate height, facilitating a smooth flow of materials across the conveyor system. This versatility allows it to be used both horizontally and vertically, particularly in wedge conveyors. With an effective sliding rail length and actual chain length that can be tailored to specific requirements, this product offers customization to meet various operational needs. Additional versions and modifications are available upon request through Bosch Rexroth's modification department. The CAM WHEEL comes fully assembled with all necessary fastening materials for mounting to STS section profiles included in the scope of delivery. The housing is made from non-rusting steel, while the chain wheel itself is composed of white PA material. The product's weight and dimensions are optimized for its function within conveyor systems. Designed for deflection angles detailed in a provided table, this curve wheel can accommodate all suitable chain types. Other deflection angles can be requested to fit particular applications. In summary, the Bosch Rexroth CAM WHEEL 120+ STS 180° provides a robust solution for efficient direction changes within conveyor systems while adhering to health and safety regulations.

$848.07 USD

Availability: 2 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 25, 2024 when ordered in

CAM WHEEL 120+ STS 180°

Curve wheel STS VFplus 120 180°

Unpacked Weight: 5.2 kg

Surfaces in contact with chain made of FDA-compliant materials No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 For deflection angles, see table Other deflection angles on request Suitable chain types: all

Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	2x 1,01
Actual chain length	2x 0,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	5.2
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Size [b]	120
Dimension [A]	240.5
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Curve wheel STS

Curve wheel STS VFplus 30°

Curve wheel STS VFplus 45°

Curve wheel AL VFplus 90°

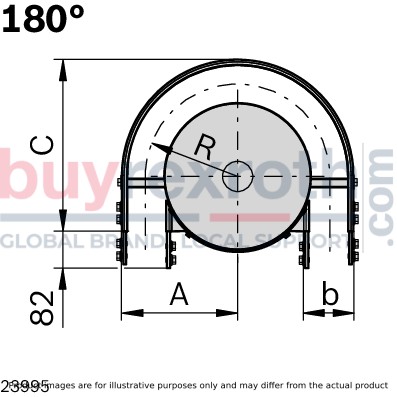

Curve wheel STS VFplus 180°

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	322.5	279.4	153
	45	185.5	322.5	301.9	153
	90	185.5	322.5	285.5	153
	180	185.5		287.5	153
90	30	210.5	347.5	291.9	165.5
	45	210.5	347.5	319.6	165.5
	90	210.5	347.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	377.5	306.9	180.5
	45	240.5	377.5	340.8	180.5
	90	240.5	377.5	340.5	180.5
	180	240.5		340.5	180.5

Note: High-pressure cleaning of the ball bearings is not permitted.
