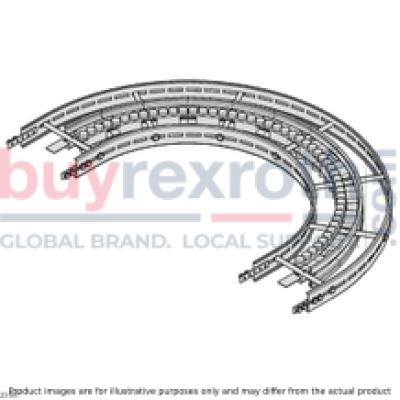

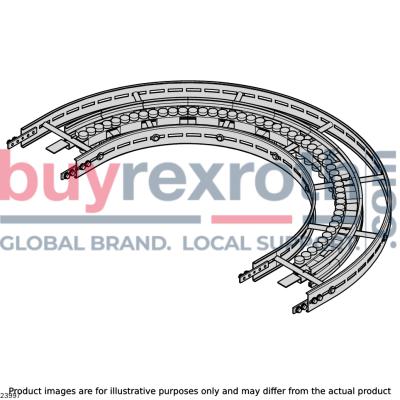

CURVE 240+ HOR STS 45° R500

Manufacturer: Bosch Rexroth

Material #: 3842547128

Model : CURVE 240+ HOR STS 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 240+ HOR STS 45° R500 (3842547128) is a state-of-the-art roller curve designed for horizontal changes in chain direction within conveyor systems. This component boasts patented roller elements that ensure low-friction and quieter operation, enhancing the efficiency of material handling processes. The roller curve's easy-to-clean design is particularly suitable for industries where hygiene is paramount, as it features ball bearings made of non-rusting steel, complete with seals on both sides and FDA-compliant grease filling. Moreover, the surfaces that come into contact with the conveyor chain are constructed from FDA-compliant materials, making this component an ideal choice for applications involving direct contact with food or pharmaceutical products. The CURVE 240+ HOR STS offers an effective sliding rail length and actual chain length that can be specified according to customer requirements, with additional versions available upon request. The deflection angle facilitates a smooth transition in the conveyor's direction while maintaining the integrity and lifespan of the chain. With its robust non-rusting steel profile, PA roller carrier, stainless steel ball bearings, and connectors, this product promises durability and longevity in demanding operational environments. Included in its scope of delivery are all necessary fastening materials for mounting to the STS section profile. The CURVE 240+ HOR STS comes fully assembled for ease of installation. It also requires slide rails which are calculated based on size b dimension A specifications. In summary, the Bosch Rexroth CURVE 240+ HOR STS 45° R500 (3842547128) is an innovative solution designed to facilitate smooth and efficient directional changes in conveyor systems while adhering to strict hygiene standards thanks to its FDA-compliant components and construction.

$1,328.61 USD

More are expected on November 13, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 13, 2024 when ordered in

CURVE 240+ HOR STS 45° R500

Roller curve horizontal STS VFplus 240 45°

Unpacked Weight: 4.24 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	5x 0,59
Actual chain length	2x 0,59
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	4.24
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	240
Dimension [A]	609.1
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
