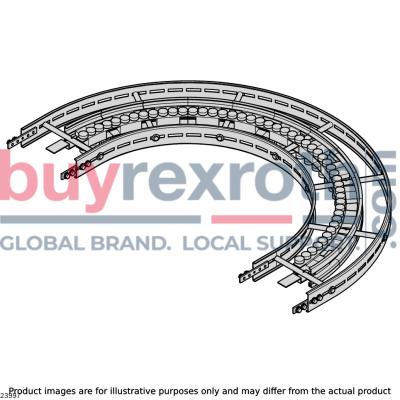

CURVE 240+ HOR STS 30° R500

Manufacturer: Bosch Rexroth

Material #: 3842547127

Model : CURVE 240+ HOR STS 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 240+ HOR STS 30? R500 (3842547127) is a high-quality roller curve designed for horizontal changes in chain direction within conveyor systems. This product features patented roller elements that ensure low-friction and quieter operation, enhancing the efficiency of material handling processes. The easy-to-clean design is particularly beneficial for industries where hygiene is paramount. It incorporates ball bearings made of non-rusting steel, sealed on both sides and filled with FDA-compliant grease to meet rigorous health standards. The surfaces that come into contact with the chain are also constructed from FDA-compliant materials, making this roller curve suitable for applications involving direct contact with food products or pharmaceuticals. With a deflection angle of 30 degrees and a deflection radius of R500, the CURVE 240+ HOR STS can accommodate all types of chains. The effective sliding rail length and actual chain length vary according to specific requirements and additional versions can be requested through Bosch Rexroth's modification department. This component is designed to increase the service life of the conveyor chain while reducing system costs due to its durable construction and reduced wear on moving parts. The product group ID, size specifications, and weight are detailed in the technical documentation provided by Bosch Rexroth. Included in the scope of delivery are fastening materials for mounting to the STS section profile, ensuring a seamless integration into existing conveyor systems. Fully assembled upon delivery, this roller curve requires slide rails calculated by size b and dimension A for proper installation. In summary, the Bosch Rexroth CURVE 240+ HOR STS 30? R500 is an essential component for any conveyor system requiring hygienic, efficient, and quiet operation with horizontal changes in direction.

$1,220.86 USD

More are expected on November 22, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 22, 2024 when ordered in

CURVE 240+ HOR STS 30° R500

Roller curve horizontal STS VFplus 240 30°

Unpacked Weight: 3.54 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	5x 0,46
Actual chain length	2x 0,46
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.54
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	240
Dimension [A]	496.6
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
