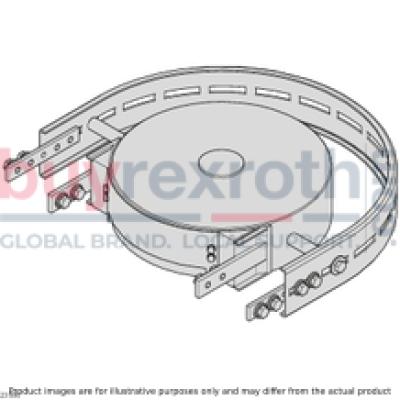

CAM WHEEL 90+ STS 90°

Manufacturer: Bosch Rexroth

Material #: 3842547117

Model : CAM WHEEL 90+ STS 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL (3842547117) is a high-quality curve wheel designed for use in conveyor systems that require a horizontal change in direction of the chain. This CAM WHEEL model is part of the STS 90 series and boasts an easy-to-clean design, ensuring it meets the stringent hygiene standards often required in industries such as food processing. The ball bearings are made from non-rusting steel and come with seals on both sides, along with FDA-compliant grease filling, enhancing the durability and safety of the wheel. Crafted for versatility, this CAM WHEEL can be utilized both horizontally and vertically, making it suitable for wedge conveyors. Its design prevents any interfering contours above the chain plate height, allowing for smooth operation without any obstructions. The surfaces that come into contact with the chain are made from FDA-compliant materials to ensure compliance with health regulations. The product comes fully assembled with all necessary fastening materials for mounting to STS section profiles included in the scope of delivery. The housing is constructed from non-rusting steel, while the chain wheel itself is made from white PA (polyamide), ensuring strength and longevity. With an effective sliding rail length and actual chain length specified by individual requirements, this CAM WHEEL can be tailored to meet various conveyor needs. Additional versions and deflection angles are available upon request through Bosch Rexroth's modification department. This flexibility ensures that specific conveyor configurations can be accommodated. Suitable for all standard chain types, this curve wheel is a critical component in creating efficient conveyor systems that require precise direction changes with minimal friction and wear on the system.

$759.72 USD

More are expected on November 12, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 12, 2024 when ordered in

CAM WHEEL 90+ STS 90°

Curve wheel STS VFplus 90 90°

Unpacked Weight: 4.6 kg

Surfaces in contact with chain made of FDA-compliant materials No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 For deflection angles, see table Other deflection angles on request Suitable chain types: all

Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	2x 0,58
Actual chain length	2x 0,46
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	4.6
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Size [b]	90
Dimension [A]	210.5
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Curve wheel STS

Curve wheel STS VFplus 30°

Curve wheel STS VFplus 45°

Curve wheel AL VFplus 90°

Curve wheel STS VFplus 180°

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	322.5	279.4	153
	45	185.5	322.5	301.9	153
	90	185.5	322.5	285.5	153
	180	185.5		287.5	153
90	30	210.5	347.5	291.9	165.5
	45	210.5	347.5	319.6	165.5
	90	210.5	347.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	377.5	306.9	180.5
	45	240.5	377.5	340.8	180.5
	90	240.5	377.5	340.5	180.5
	180	240.5		340.5	180.5

Note: High-pressure cleaning of the ball bearings is not permitted.
