CAM WHEEL 65+ AL 45° ESD

Manufacturer: Bosch Rexroth

Material #: 3842553030

Model : CAM WHEEL 65+ AL 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL 65+ AL 45° ESD (3842553030) is a high-precision component designed to facilitate horizontal direction changes in conveyor chains with extreme efficiency and minimal friction. This curve wheel is crafted from durable diecast aluminum for the housing, with a chain wheel made of PA ESD in black, and features nonrusting steel ball bearings. It's specifically engineered to allow for direction changes using very small radii without creating any interfering contours above the chain plate height. This CAM WHEEL model is part of the VFplus product group and comes fully assembled, including fastening materials for easy mounting to the AL section profile. The effective sliding rail length and actual chain length can be customized according to specific requirements, with additional versions available upon request through Bosch Rexroth's modification department. The design of this CAM WHEEL ensures that it meets ESD requirements, making it suitable for environments where electrostatic discharge can be a concern. Its weight and dimensions are optimized for seamless integration into various conveyor systems. The use of high-quality materials such as PA ESD and nonrusting steel not only provides durability but also compliance with FDA regulations, ensuring suitability for a wide range of applications including those in sensitive environments. In summary, the Bosch Rexroth CAM WHEEL 65+ AL 45° ESD offers an innovative solution for conveyor systems requiring precise and low-friction directional changes. Its robust construction and thoughtful design make it a reliable component in improving the efficiency and safety of material handling operations.

$783.85 USD

Availability: 4 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 30, 2024 when ordered in

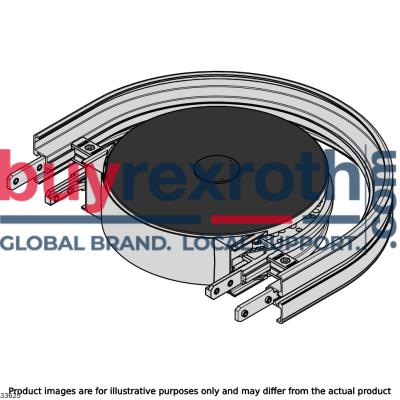

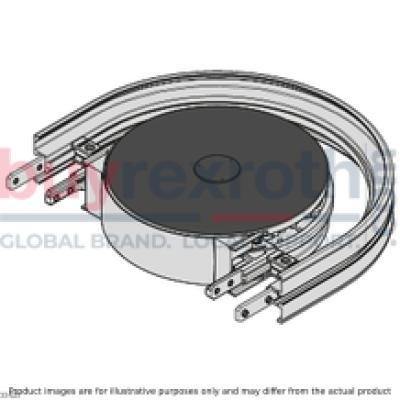

CAM WHEEL 65+ AL 45° ESD

Curve wheel AL ESD VFplus 65 45°

Unpacked Weight: 3.55 kg

No interfering contours above chain plate height

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain. It enables low-friction direction changes with very small radii.

For attachment options, see the matrix

Size: 65, 90 See table for the deflection angles, more deflection angles available on request Suitable chain type: ESD conveyor chain For circuit systems without conveyor chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons With conductive wheel

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain
It enables low-friction direction changes with very small radii
No interfering contours above chain plate height

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	2x 0,38
Actual chain length	2x 0,32
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
ESD	yes
Weight	3.55
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	65
Dimension [A]	185.5
Material information	Housing: Diecast aluminum,Chain wheel: PA ESD, black,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves		Drives			Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel ESD	Vertical curve	Head drive (STS)	Connection drive (STS)	Center drive (STS)**	Base unit (STS)	90° (STS)**
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel ESD	J	J	L2)	L2)
Curves	Vertical curve	J	J	L2)	L2)	L1)
Drives	Head drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N
	Connection drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N	N
Return Unit	Base unit (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	N	L2)	L2, 3)
Return Unit	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	L2)	N	N	L2)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
