CURVE 160+ HOR AL 30° R500

Manufacturer: Bosch Rexroth

Material #: 3842547060

Model : CURVE 160+ HOR AL 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 160+ HOR AL 30? R500 (3842547060) is a high-quality roller curve designed for horizontal chain direction changes within conveyor systems. This innovative component features patented roller elements that facilitate low-friction, quieter changes in the chain's direction, which are essential for maintaining the integrity and efficiency of the conveyor system. The roller elements are equipped with ball bearings made from non-rusting steel, complete with seals on both sides and filled with FDA-compliant grease, ensuring durability and compliance with industry standards for cleanliness. The CURVE 160+ HOR AL 30? R500 is constructed with surfaces that come into contact with the chain made from FDA-compliant materials, making it suitable for applications where hygiene is paramount. The aluminum profile of the curve is anodized to resist corrosion, while the roller carrier is made from PA (Polyamide), a robust thermoplastic material. Connectors are galvanized steel, and the rollers themselves are also constructed from PA. With an effective sliding rail length and actual chain length tailored to specific requirements, this product can be integrated seamlessly into existing conveyor systems. It comes fully assembled, including fastening materials for easy mounting to AL section profiles. The product's deflection angle facilitates smooth transitions within conveyor setups, and while its standard size caters to a broad range of applications, additional versions and deflection angles can be requested through Bosch Rexroth's modification department. This roller curve is designed to support all suitable chain types and has options for extension into a curve wheel drive or alpine conveyor system. Its low-friction technology not only extends the service life of both chains and rollers but also significantly reduces downtimes associated with wear and tear—contributing to overall system cost savings.

$772.06 USD

More are expected on December 23, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 23, 2024 when ordered in

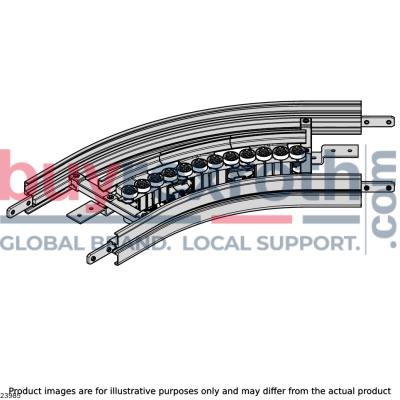

CURVE 160+ HOR AL 30° R500

Roller curve horizontal AL VFplus 160 30°

Unpacked Weight: 2.421 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	5x 0,46
Actual chain length	2x 0,46
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	2.421
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	160
Dimension [A]	476.6
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
