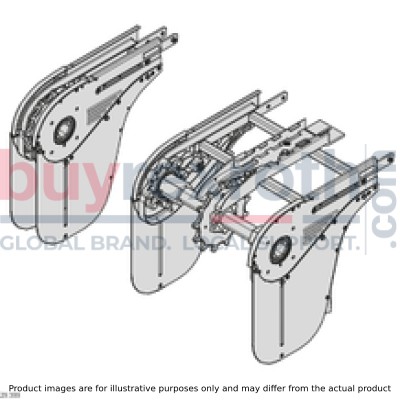

BASE UNIT 240+ AL DIRECT

Manufacturer: Bosch Rexroth

Material #: 3842546124

Model : BASE UNIT 240+ AL DIRECT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 240+ AL DIRECT (Material Number 3842546124) is a sophisticated conveyor system component designed for seamless integration into varied material handling setups. It features a base unit constructed from die-cast aluminum, coated in silver powder to ensure durability and resistance against corrosion. This unit can be quickly converted into a head drive with variable mounting positions by adding an appropriate drive kit. The BASE UNIT 240+ AL DIRECT is engineered to reduce noise emissions significantly, thanks to its slide rails that are carefully guided within the head drive. It facilitates the installation of the drive kit on either side—right or left—providing flexibility in design and layout of conveyor systems. The model includes a double-sided hexagonal hollow shaft as standard, allowing for the driving of parallel conveyor sections or bridges with ease. This unit is equipped with ball bearings made from non-rusting steel, which include seals on both sides and are filled with FDA-compliant grease, ensuring safe use in environments where food contact is possible. It supports the implementation of parallel sections with no gap dimension, enhancing the efficiency of material transfer. Moreover, the side elements of this unit come with slots for attaching holders for lateral guides or similar accessories. When used on inclined sections, it is recommended to employ a chain sprocket to prevent chain backslip. The product's scope of delivery includes fastening materials and assembled chain guards. The BASE UNIT 240+ AL DIRECT supports all track widths and chain types while handling permissible chain tensile forces up to specified limits. It accommodates section lengths and offers conveying speeds as per requirement, with other speeds available upon request. Notably designed for non-reversible operations, it also features a chain bag that compensates for chain elongation over its service life.

$989.40 USD

More are expected on December 16, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 16, 2024 when ordered in

BASE UNIT 240+ AL DIRECT

Base unit AL, VFplus 240 dir.

Unpacked Weight: 5.58 kg

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Implementation of parallel sections with gap dimension down to zero Side elements with slot to attach holders for lateral guides, or similar A chain sprocket must be used to limit the chain slipping back on inclined sections.

The base unit is quickly turned into a head drive with variable mounting position by adding a drive kit.

With the double-sided hexagonal hollow shaft, other components can be easily driven using a transmission (active bridge).

Size: all track widths Suitable chain types: all Permissible chain tensile force: Fmax = 1250 N Section length: L ≤ 30 m Conveying speed: vN 4-27 m/min, other speeds available on request Chain bag to compensate for chain elongation during service life Not suitable for reversible operation

Chain sprocket

Innovative drive concept

Conveyor noise level

Base unit AL direct + drive kit = a complete head drive
Reduced noise emission due to slide rails guided in the head drive
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Implementation of parallel sections with gap dimension down to zero
Side elements with slot to attach holders for lateral guides, or similar
A chain sprocket must be used to limit the chain slipping back on inclined sections.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	4x 0,2
Actual chain length	0,881
Weight	5.58
Scope of delivery	Incl. fastening material
Delivery information	Assembled: chain guards enclosed
Recommended accessories	Active or passive bridge connection kits,Synchronous drive connection kit
Required accessories	Drive kit,Slide rail: Length calculation,Motor support
Size [b]	240
Material information	Housing: Diecast aluminum, powder-coated, silver,Chain wheel: PA,Chain guide: PA,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Head drive AL GM = 0

Head drive AL GM = 2

Base unit AL

Note: High-pressure cleaning of the ball bearings is not permitted.

Note: A chain sprocket must be used to limit the chain slipping back on inclined sections.

Slide rail

Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral bolting

CAD data

Drive kit

The adjustable ball catch coupling is protected and integrated in the flange to save space

CAD data

Connection kit active bridge, connection kit passive bridge

Simple transmission of the drive force using hexagonal hollow shafts integrated into the base unit or return unit as standard Can be retrofitted into a standard configuration at any time Active and passive bridges can be used at section ends for product transfer

CAD data

Connection kit synchronous drive
external motor/internal motor

CAD data

BASE UNIT 240+ AL DIRECT

Manufacturer: Bosch Rexroth

Material #: 3842546124

Model : BASE UNIT 240+ AL DIRECT

More are expected on December 16, 2024

Chain sprocket

Combination matrix

Head drive AL GM = 0

Head drive AL GM = 2

Base unit AL

Slide rail

Slide rail

Drive kit

Drive kit

Connection kit active bridge, connection kit passive bridge

Connection kit active bridge, connection kit passive bridge

Connection kit synchronous drive
external motor/internal motor

Connection kit synchronous drive
external motor/internal motor
