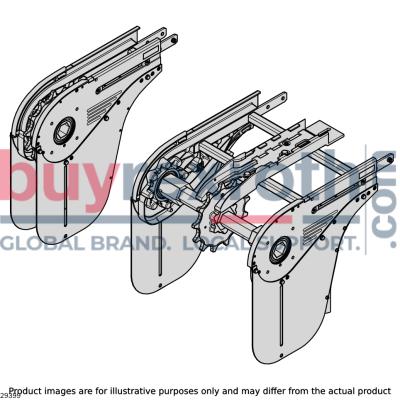

BASE UNIT 320+ AL DIRECT

Manufacturer: Bosch Rexroth

Material #: 3842546125

Model : BASE UNIT 320+ AL DIRECT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 320+ AL DIRECT (3842546125) is a versatile and efficient conveyor system component designed to facilitate the construction of sophisticated material handling solutions. This base unit, constructed from die-cast aluminum with a powder-coated silver finish, serves as a foundation for creating a complete head drive when paired with the necessary drive kit. It boasts reduced noise emission thanks to its slide rails, which are carefully guided within the head drive, ensuring quiet operation that is essential in various working environments. The BASE UNIT 320+ AL DIRECT is engineered to accommodate installation on either the right or left side, providing flexibility in motor, coupling, and flange setups. Its design includes an integrated double-sided hexagonal hollow shaft as standard, enabling it to drive parallel conveyor sections or bridges effortlessly. The ball bearings made of non-rusting steel are sealed on both sides and filled with FDA-compliant grease, highlighting the unit's suitability for industries where hygiene and cleanability are paramount. This product is capable of implementing parallel sections with zero gap dimension between them, ensuring smooth transitions and continuous flow of materials. The side elements feature slots for attaching holders for lateral guides or similar components, enhancing the customization possibilities. To prevent chain slippage on inclined sections, a chain sprocket must be employed. The BASE UNIT 320+ AL DIRECT supports all track widths and chain types while allowing a maximum permissible chain tensile force. It can handle section lengths up to a specified maximum and achieves conveying speeds that can be tailored upon request. Additionally, it includes a chain bag designed to compensate for chain elongation during its service life. This unit is not intended for reversible operation scenarios. In summary, this base unit by Bosch Rexroth provides an innovative drive concept that contributes to lowered conveyor noise levels while offering robust performance suitable for various applications where precise material handling is required.

$1,113.07 USD

More are expected on December 13, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 13, 2024 when ordered in

BASE UNIT 320+ AL DIRECT

Base unit AL, VFplus 320 dir.

Unpacked Weight: 6.04 kg

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Implementation of parallel sections with gap dimension down to zero Side elements with slot to attach holders for lateral guides, or similar A chain sprocket must be used to limit the chain slipping back on inclined sections.

The base unit is quickly turned into a head drive with variable mounting position by adding a drive kit.

With the double-sided hexagonal hollow shaft, other components can be easily driven using a transmission (active bridge).

Size: all track widths Suitable chain types: all Permissible chain tensile force: Fmax = 1250 N Section length: L ≤ 30 m Conveying speed: vN 4-27 m/min, other speeds available on request Chain bag to compensate for chain elongation during service life Not suitable for reversible operation

Chain sprocket

Innovative drive concept

Conveyor noise level

Base unit AL direct + drive kit = a complete head drive
Reduced noise emission due to slide rails guided in the head drive
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Implementation of parallel sections with gap dimension down to zero
Side elements with slot to attach holders for lateral guides, or similar
A chain sprocket must be used to limit the chain slipping back on inclined sections.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	4x 0,2
Actual chain length	0,881
Weight	6.04
Scope of delivery	Incl. fastening material
Delivery information	Assembled: chain guards enclosed
Recommended accessories	Active or passive bridge connection kits,Synchronous drive connection kit
Required accessories	Drive kit,Slide rail: Length calculation,Motor support
Size [b]	320
Material information	Housing: Diecast aluminum, powder-coated, silver,Chain wheel: PA,Chain guide: PA,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Head drive AL GM = 0

Head drive AL GM = 2

Base unit AL

Note: High-pressure cleaning of the ball bearings is not permitted.

Note: A chain sprocket must be used to limit the chain slipping back on inclined sections.

Slide rail

Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral bolting

CAD data

Drive kit

The adjustable ball catch coupling is protected and integrated in the flange to save space

CAD data

Connection kit active bridge, connection kit passive bridge

Simple transmission of the drive force using hexagonal hollow shafts integrated into the base unit or return unit as standard Can be retrofitted into a standard configuration at any time Active and passive bridges can be used at section ends for product transfer

CAD data

Connection kit synchronous drive
external motor/internal motor

CAD data
