RETURN 90+ AL

Manufacturer: Bosch Rexroth

Material #: 3842547517

Model : RETURN 90+ AL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth RETURN 90+ AL (3842547517) is a versatile and advanced return unit designed for conveyor systems. This unit is characterized by its reduced noise emissions, which are achieved through slide rails that are meticulously guided within the return apparatus. It is engineered to allow for the installation of a drive kit on either the right or left side, including a motor, coupling, and flange. The RETURN 90+ AL also facilitates the drive of a parallel conveyor section or bridge via an integrated standard hexagonal hollow shaft. Constructed with high-quality materials, the housing of this unit is made from die-cast aluminum with a durable powder coat finish. The chain wheel and guide are crafted from PA (polyamide), while the ball bearings are made from non-rusting steel 1.4301, complete with seals on both sides and FDA-compliant grease filling for reliable performance in various environments. These ball bearings ensure smooth operation and longevity of the system. The RETURN 90+ AL is designed to cater to all track widths and is compatible with all types of chains that the system might employ. It can handle maximum permissible chain tensile forces efficiently in both return unit function (Fmax = N) and head drive function without chain bag (Fmax = N). The innovative design allows for conveying speeds up to vN = m/min, with customization options available upon request. This product also boasts high flexibility and rapid delivery times due to its standardized components that facilitate easy stock-keeping. Additionally, it includes side elements with slots designed for attaching holders for lateral guides or similar accessories. The Bosch Rexroth RETURN 90+ AL comes fully assembled including all necessary fastening materials, ensuring ease of installation. Its implementation allows for seamless integration into existing conveyor systems or as part of new installations where efficiency, reliability, and low maintenance are key operational requirements.

$671.37 USD

More are expected on June 26, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as June 26, 2024 when ordered in

RETURN 90+ AL

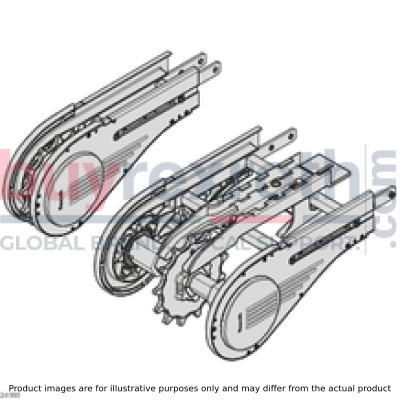

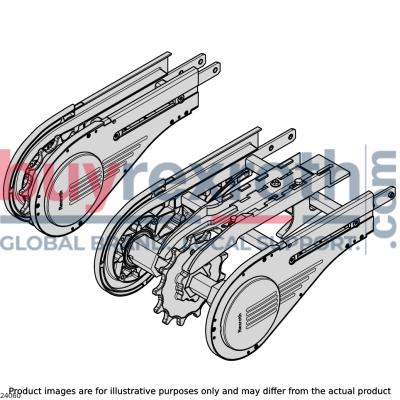

Return unit AL; VFplus 90

Unpacked Weight: 1.89 kg

In-stock, standardized components Side elements with slots for accommodating holders Pulling section; pushing and reversible operation on request High flexibility and short delivery times thanks to a novel drive concept Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Implementation of parallel sections with gap dimension down to zero Side elements with slot to attach holders for lateral guides, or similar

Thanks to the innovative drive concept, the return unit can be operated simply by itself or supplemented with a drive kit to be operated as a head drive without chain bag. The section length is limited to a maximum of 7 m.

Size: all track widths Suitable chain types: all Permissible chain tensile force

Return unit function: Fmax = 1250 N

Head drive function without chain bag: Fmax = 600 N

With shortened maintenance interval, due to chain elongation

Section length for return unit function: L ≤ 30 m

Section length for drive function: L ≤ 7 m

Conveying speed: vN = 2-60 m/min, other speeds available on request Use in combination with the drive kit as a wedge conveyor drive Not suitable for reversible operation

Innovative drive concept

Reduced noise emission due to slide rails guided in the return unit
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	0,742
Actual chain length	2x 0,2
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	1.89
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation,For use as a drive:Assembly moduleDrive kitMotor support
Size [b]	90
Material information	Housing: Diecast aluminum, powder-coated,Chain wheel: PA,Chain guide: PA,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA,Connector: Steel, galvanized,Ball bearing: Non-rusting steel 1.4301/FDA
Track width in direction of transport [b]	90

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Return unit AL

Note: High-pressure cleaning of the ball bearings is not permitted.

RETURN 90+ AL

Manufacturer: Bosch Rexroth

Material #: 3842547517

Model : RETURN 90+ AL

More are expected on June 26, 2024

Combination matrix

Return unit AL

Slide rail

Slide rail

Assembly module AL

Assembly module AL

Drive kit

Drive kit

Transmission kit

Transmission kit

Section support 65-120 AL

Section support 65-120 AL

Section support 160-320 AL

Section support 160-320 AL
