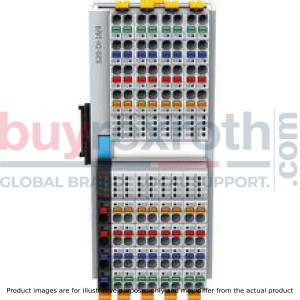

DIGITAL INPUT MODULE S20-DI-16/4

Manufacturer: Bosch Rexroth

Material #: R911172532

Model : S20-DI-16/4

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth S20-DI-16/4 (R911172532) is a sophisticated digital input module designed to seamlessly integrate into control cabinet applications requiring precise and rapid signal acquisition. This module is particularly adept at capturing digital signals within an S station setup, offering users the flexibility to adjust filter times for enhanced interference immunity. With adjustable filter times, including options of less than 1 μs, 3 μs, or 10 μs, this module can be tailored to support counting functions with an input frequency of up to 100 kHz. The S20-DI-16/4 features an electronic device nameplate alongside diagnostic and status indicators, ensuring easy monitoring and maintenance. It accommodates 16 digital inputs compliant with EN 61131-2 type 1 and type 3 standards, operating at a voltage of 24 VDC with a nominal current consumption of 5 mA. The connection technology is versatile, supporting sensors in both 2-, 3-, and 4-wire configurations. With its compact design optimized for space-saving top hat rail mounting, the S20-DI-16/4 exemplifies Bosch Rexroth's commitment to modular and straightforward IO technology. The minimum update time of less than 1 μs guarantees swift response times necessary for dynamic industrial environments. Moreover, the module's forced ventilated axial fan ensures reliable operation under various thermal conditions. The ease of installation coupled with open communication standards promotes maximum availability and seamless integration into existing systems. Users will appreciate the innovative assembly concept that streamlines setup processes. In summary, the Bosch Rexroth S20-DI-16/4 digital input module is a high-performance component engineered for efficient signal processing in demanding automation tasks where quick installation, robust design, and flexible configuration are paramount.

$491.87 USD

Availability: 147 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as April 24, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

DIGITAL INPUT MODULE S20-DI-16/4

Cabinet I/O S20

The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.

Unpacked Weight: 0.3 kg

This module is designed for use within an S20 station. It is used to acquire digital signals. The filter times for the inputs can be adjusted to increase the interference immunity. Filter times of 100 μs allow the user to applicatively implement a counting function using an input frequency of maximum 5 kHz.

Innovative assembly and installation concept
Individually combinable modules
Space-saving I/O technology for top hat rail mounting
Compact, modular and simple

Maximum input frequency: 5 kHz Electronic device nameplate Diagnostic and status indicators

NAME	DOCUMENT
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Type code extension	S20-DI-16/4
Productgroup ID	4,6
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Number of channels	16
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DI-16%2F4**&downloads=true
Weight	0.3

Maximum input frequency: 5 kHz Electronic device nameplate Diagnostic and status indicators

General data

Type		S20-DI-16/4
Color		Gray
Weight	g	231
Sensor supply voltage		US = UI - 1 V
Ambient temperature (operation)		-25 °C ... +60 °C
Ambient temperature (storage/transport)		-40 °C ... +85 °C
Permissible relative humidity (operation)		5 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		5 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

Connection data

Type		S20-DI-16/4
Designation		S20 connector
Connection type		Spring-cage connection with direct plug technology
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16
Stripping length	mm	8

Interface local bus

Type		S20-DI-16/4
Connection type		Bus base module
Transmission speed	MBit/s	100

Power supply to logic

Type		S20-DI-16/4
Logic voltage UBus 1)	V DC	5
Maximum current consumption from UBus	mA	120
Maximum power consumption from UBus	mW	600

1)	Via bus base module

Power supply to peripherals

Type		S20-DI-16/4
Feed to digital input modules UI	V DC	24
Maximum permitted voltage range 1)		19.2 V DC ... 30 V DC
Current consumption from UI 2)	A	≤ 4
Typical power consumption from UI 3)	mW	240
Maximum power consumption from UI 4)	W	120.8
Overvoltage/reverse polarity protection supply voltage		Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning)
Guarantee 5)	A	≤ 8

1)	Including all tolerances, including ripple
2)	2 A per 8 input group
3)	Without sensors
4)	From that, 800 mW internal losses
5)	Reverse polarity protection up to 5 A

Sensor supply

Type		S20-DI-16/4
Sensor supply voltage		US = UI - 1 V
Maximum sensor current per channel	A	2
Maximum sensor total current per group	A	2
Short-circuit protection		Electronic, per group
Overload protection		Electronic, per group

Digital inputs

Type		S20-DI-16/4
Number of digital inputs		16
Connection type		Direct plug-in technology
Connectivity technology		2-, 3-, 4-wire technology
Description of the input		Acc. to EN 61131-2 type 1 and type 3
Nominal input voltage	V DC	24
Nominal input current	mA	2.4
Current profile		Linear up to nominal current, then constant around 2.4 mA
Input voltage range "0" signal		-30 V DC ... 5 V DC
Input voltage range "1" signal		11 V DC ... 30 V DC
Input filter time		500 µs (default); < 100 µs
Reverse polarity protection		Electronic

Error messages to the higher-level control or computer system

Type		S20-DI-16/4
Error message		Failure in peripheral supply Overload of group 1 Overload of group 2

Electrical isolation/insulation of the voltage ranges

Type		S20-DI-16/4
Test distance		Test voltage
5 V supply (logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
5 V supply (logic)/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		S20-DI-16/4
Vibration resistance 1)	g	5
Shock 2)		25 g, 11 ms duration, semi-sinusoidal shock pulse
Continuous shock 3)	g	10

1)	Acc. to IEC 60068-2-6
2)	Acc. to IEC 60068-2-27
3)	Acc. to EN 60068-2-29

Conformity

Type		S20-DI-16/4
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class B acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

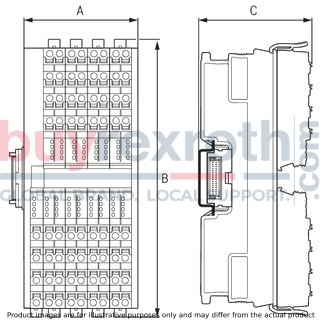

Dimensions

Type		S20-DI-16/4
A	mm	53.6
B	mm	129.9
C	mm	54
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
