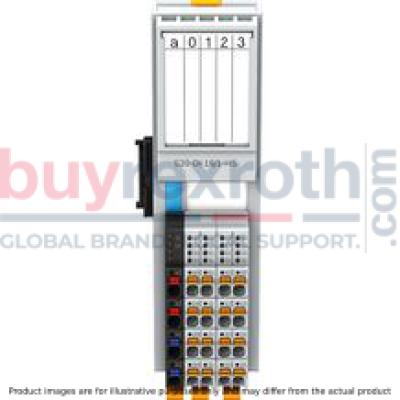

DIGITAL INPUT MODULE S20-DI-16/1-HS

Manufacturer: Bosch Rexroth

Material #: R911173344

Model : S20-DI-16/1-HS

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth S20-DI-16/1-HS (R911173344) is a high-functioning input module designed for digital signal acquisition within an S station environment. This module stands out with its ability to implement counting functions applicatively due to an internal update time of less than 1 ms, and it can handle input frequencies up to 100 kHz. The S20-DI-16/1-HS is equipped with 16 digital inputs that comply with EN 61131-2 type 1 and type 3, operating at 24 VDC with a current draw of 5 mA. This module's robust design ensures durability and reliability in various applications. Its forced ventilated axial fan contributes to stable operation under varying conditions. The compact and modular nature of the device allows for space-saving installation on top hat rails, making it an ideal choice for control cabinets or field installations. The setup process is simplified by innovative assembly and installation concepts, providing ease of handling and quick deployment. With open communication standards, the S20-DI-16/1-HS ensures seamless integration into existing systems for maximum availability. Diagnostic and status indicators on the device facilitate efficient monitoring and troubleshooting. Additionally, users can customize filter times in three stages—less than 3 ms, 3 ms, or 10 ms—to match specific application requirements. The electronic device nameplate offers vital information at a glance, while the connection of sensors and actuators using two-wire technology streamlines the wiring process. With these features combined, the Bosch Rexroth S20-DI-16/1-HS presents itself as a versatile solution for digital input collection in automated systems.

$881.29 USD

Availability: 3 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as July 8, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

DIGITAL INPUT MODULE S20-DI-16/1-HS

Cabinet I/O S20

The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.

Unpacked Weight: 0.180 kg

Maximum input frequency: 5 kHz Electronic device nameplate Diagnostic and status indicators

This module is designed for use within an S20 station. It is used to acquire digital signals. The internal update time of < 5 μs makes it possible to applicatively implement a counting function using the module. The input frequency for counting can be a maximum 100 kHz.

Individually combinable modules
Innovative assembly and installation concept
Compact, modular and simple
Space-saving I/O technology for top hat rail mounting

2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Type code extension	S20-DI-16/1-HS
Productgroup ID	4,6
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Number of channels	16
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DI-16%2F1%20HS**&downloads=true
Weight	0.180

General data

Type		S20-DI-16/1 HS
Color		Gray
Weight 1)	g	133
Ambient temperature (operation)		-25 °C ... +60 °C
Ambient temperature (storage/transport)		-40 °C ... +85 °C
Permissible relative humidity (operation)		5 % ... 95 %, no dewing
Permissible relative humidity (storage/transport)		5 % ... 95 %, no dewing
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1
Installation position		Any (no temperature derating)

1)	Including plug and bus base module

Connection data

Type		S20-DI-16/1 HS
Designation		S20 connector
Connection type		Push-in technology
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16
Stripping length	mm	8

Interface local bus

Type		S20-DI-16/1 HS
Connection type		Bus base module
Transmission speed	MBit/s	100

Power supply to logic

Type		S20-DI-16/1 HS
Logic voltage UBus 1)	V DC	5
Maximum current consumption from UBus	mA	120
Maximum power consumption from UBus	mW	600

1)	Via bus base module

Power supply to peripherals

Type		S20-DI-16/1 HS
Feed to digital input modules UI	V DC	24
Maximum permitted voltage range 1)		19.2 V DC ... 30 V DC
Current consumption from UI	mA	20
Typical power consumption from UI	mW	380
Maximum power consumption from UI	mW	480
Overvoltage/reverse polarity protection supply voltage		Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning)
Guarantee 2)	A	≤ 8

1)	Including all tolerances, including ripple
2)	Reverse polarity protection up to 5 A

Digital inputs

Type		S20-DI-16/1 HS
Number of digital inputs		16
Connection type		Push-in technology
Connectivity technology		1-wire technology
Description of the input		Acc. to EN 61131-2 type 1 and type 3
Nominal input voltage	V DC	24
Input voltage range		-3 V DC ... 30 V DC
Nominal input current	mA	2.3
Current profile		Linear up to nominal current, then constant around 2.3 mA
Input voltage range "0" signal		-3 V DC ... 8.4 V DC
Input voltage range "1" signal		9.4 V ... 30 V DC
Input filter time		< 5 μs
Process data update 1)	µs	< 5
Reverse polarity protection		Parallel diode (30 V, 5 s)

1)	Bus synchronous

PROFIBUS telegram data

Type		S20-DI-16/1 HS
Need for parameter data	byte	3
Need for configuration data	byte	6

Error messages to the higher-level control or computer system

Type		S20-DI-16/1 HS
Error message		Failure in peripheral supply

Electrical isolation/insulation of the voltage ranges

Type		S20-DI-16/1 HS
Test distance		Test voltage
5 V supply (logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
5 V supply (logic)/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		S20-DI-16/1 HS
Vibration resistance 1)	g	5
Shock 2)	g	30
Continuous shock 2)	g	10

1)	Acc. to EN 60068-2-6/IEC 60068-2-6
2)	Acc. to EN 60068-2-27/IEC 60068-2-27

Conformity

Type		S20-DI-16/1 HS
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class B acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		S20-DI-16/1 HS
A	mm	35
B	mm	126.1
C	mm	54
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
