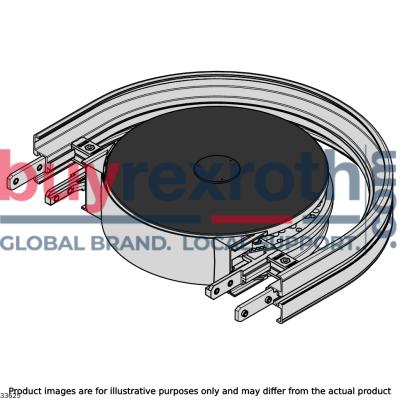

CAM WHEEL 90+ AL 90° ESD

Manufacturer: Bosch Rexroth

Material #: 3842553035

Model : CAM WHEEL 90+ AL 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL 90+ AL 90° ESD (3842553035) is a specialized component designed for conveyor systems requiring precise and low-friction directional changes. This curve wheel is constructed from diecast aluminum for the housing, with a chain wheel made of PA ESD in black, and it incorporates non-rusting steel ball bearings to ensure durability and longevity. Its primary function is to provide a horizontal direction change for the conveyor chain, facilitating movement with very small radii and eliminating any interfering contours above the chain plate height. This model is particularly suited for applications where electrostatic discharge (ESD) sensitivity is a concern, as it is designed to be ESD-safe. The effective sliding rail length and actual chain length can be customized according to specific requirements, with additional versions available upon request through Bosch Rexroth's modification department. Included with the CAM WHEEL 90+ AL 90° ESD are all necessary fastening materials for mounting to the AL section profile. It comes fully assembled, simplifying the installation process. The product also adheres to FDA guidelines, making it suitable for use in environments where food safety standards are paramount. The CAM WHEEL has a dimension A of . , and it's designed to work seamlessly with ESD conveyor chains. For systems that do not have a conveyor chain return in the bottom run using a curve wheel or connection drive, an appropriate cover must be implemented for safety purposes. The product's design ensures there are no protrusions above the height of the chain plate that could interfere with materials or other components during operation.

$801.35 USD

More are expected on November 21, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 21, 2024 when ordered in

CAM WHEEL 90+ AL 90° ESD

Curve wheel AL ESD VFplus 90 90°

Unpacked Weight: 3.98 kg

No interfering contours above chain plate height

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain. It enables low-friction direction changes with very small radii.

For attachment options, see the matrix

Size: 65, 90 See table for the deflection angles, more deflection angles available on request Suitable chain type: ESD conveyor chain For circuit systems without conveyor chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons With conductive wheel

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain
It enables low-friction direction changes with very small radii
No interfering contours above chain plate height

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	2x 0,58
Actual chain length	2x 0,46
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
ESD	yes
Weight	3.98
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	90
Dimension [A]	210.5
Material information	Housing: Diecast aluminum,Chain wheel: PA ESD, black,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves		Drives			Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel ESD	Vertical curve	Head drive (STS)	Connection drive (STS)	Center drive (STS)**	Base unit (STS)	90° (STS)**
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel ESD	J	J	L2)	L2)
Curves	Vertical curve	J	J	L2)	L2)	L1)
Drives	Head drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N
	Connection drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N	N
Return Unit	Base unit (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	N	L2)	L2, 3)
Return Unit	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	L2)	N	N	L2)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
