CURVE 160+ HOR STS 180°R500

Manufacturer: Bosch Rexroth

Material #: 3842547126

Model : CURVE 160+ HOR STS 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 160+ HOR STS 180?R500 (3842547126) is a state-of-the-art roller curve designed for horizontal changes in chain direction within conveyor systems. This product features patented roller elements that significantly reduce friction and noise during operation, leading to a quieter and smoother transition at deflection points. The CURVE 160+ HOR STS is engineered with easy-to-clean characteristics, making it ideal for industries that require high standards of hygiene. Constructed with ball bearings made from non-rusting steel and sealed on both sides, this roller curve ensures durability and a long service life. The FDA-compliant grease filling within the bearings further underscores its suitability for applications where compliance with food safety regulations is paramount. All surfaces that come into contact with the chain are also made from FDA-compliant materials, ensuring safe operation in sensitive environments. The product's effective sliding rail length and actual chain length can be specified to meet different system requirements, while additional versions can be requested through Bosch Rexroth's modification department. The CURVE 160+ HOR STS comes fully assembled, including all necessary fastening materials for mounting to the STS section profile. With dimensions tailored to accommodate various deflection angles and a deflection radius of R500, this roller curve is compatible with all suitable chain types. The open section profiles and stainless steel construction contribute to its robustness and ease of maintenance. This makes the Bosch Rexroth CURVE 160+ HOR STS 180?R500 an essential component for enhancing conveyor system efficiency across multiple applications.

$2,102.47 USD

More are expected on November 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 19, 2024 when ordered in

CURVE 160+ HOR STS 180°R500

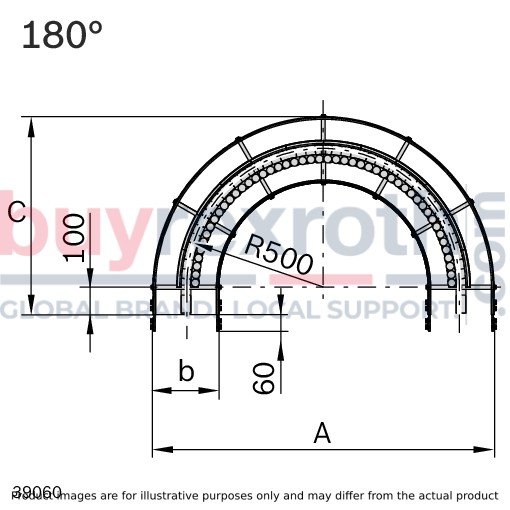

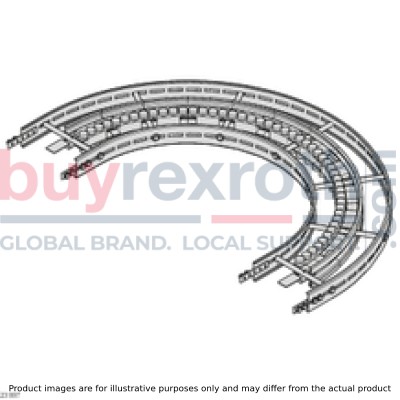

Roller curve horizontal STS VFplus 160 180°

Unpacked Weight: 11.8 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	5x 1,77
Actual chain length	2x 1,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	11.8
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	160
Dimension [A]	1160
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
