CURVE 320+ HOR AL 45° R500

Manufacturer: Bosch Rexroth

Material #: 3842547069

Model : CURVE 320+ HOR AL 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 320+ HOR AL 45° R500 (3842547069) is a high-quality roller curve designed for horizontal conveyor systems. This innovative component features patented roller elements that are engineered to facilitate low-friction and quieter changes in chain direction, enhancing the efficiency of material handling processes. Equipped with ball bearings made of non-rusting steel and sealed on both sides, the CURVE 320+ HOR AL ensures durability and smooth operation. The bearings are filled with FDA-compliant grease, making this roller curve suitable for applications where hygiene standards are paramount. The model boasts an effective sliding rail length and actual chain length that support longer conveyor sections without compromising performance. The CURVE 320+ HOR AL's deflection angle assists in precise directional changes, while the aluminum profile provides a sturdy yet lightweight structure. The roller carrier is made from PA, connectors from galvanized steel, and rollers also from PA, ensuring a robust design capable of withstanding demanding conditions. This product comes fully assembled and includes all necessary fastening materials for mounting to the AL section profile. Notably, it offers compatibility with all chain types and has provisions for extension to a curve wheel drive or alpine conveyor system. Its low-friction technology not only extends the service life of the chain but also contributes to reduced downtimes—a significant advantage for continuous operations. In summary, the Bosch Rexroth CURVE 320+ HOR AL 45° R500 is an essential component for any conveyor system requiring reliable horizontal directional changes with minimal friction and noise. Its FDA-compliant material contact surfaces make it ideal for industries where cleanliness is crucial.

$978.82 USD

More are expected on December 27, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 27, 2024 when ordered in

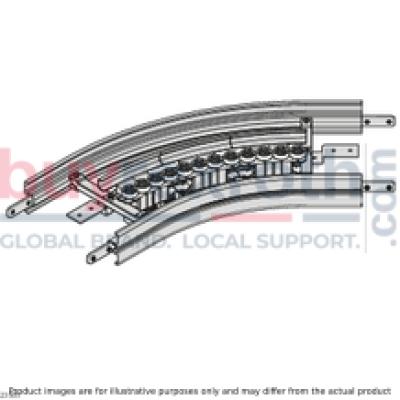

CURVE 320+ HOR AL 45° R500

Roller curve horizontal AL VFplus 320 45°

Unpacked Weight: 3.215 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	5x 0,59
Actual chain length	2x 0,59
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.215
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	320

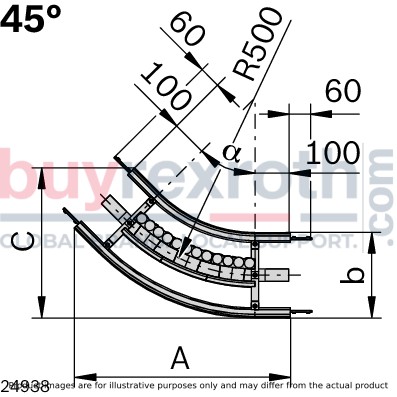

Dimension [A]	637.4
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
