CURVE 240+ HOR AL 90° R500

Manufacturer: Bosch Rexroth

Material #: 3842547066

Model : CURVE 240+ HOR AL 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 240+ HOR AL 90° R500 (3842547066) is a cutting-edge roller curve designed for seamless horizontal changes in chain direction within conveyor systems. This model boasts patented roller elements that significantly minimize friction and noise during operation, enhancing the efficiency of material handling processes. The roller elements are equipped with ball bearings made of non-rusting steel that include a seal on both sides and are filled with FDA-compliant grease, ensuring durability and compliance with food industry standards. The CURVE 240+ HOR AL 90° R500 is constructed with surfaces that come into contact with the chain made from FDA-compliant materials, making it suitable for applications where hygiene is paramount. Its deflection angle facilitates smooth transitions, while the effective sliding rail length and actual chain length can be tailored to meet specific requirements. Bosch Rexroth has designed this model to accommodate all types of chains, and additional versions can be requested through their modification department. This model's profile is made from anodized aluminum, ensuring strength and resistance to corrosion. The roller carrier is constructed from PA, while the connector is made of galvanized steel, and the rollers themselves are also PA. These materials contribute to the product's robustness and longevity. The CURVE 240+ HOR AL 90° R500 comes fully assembled, including fastening material for mounting to the AL section profile. It offers an extended service life and reduced downtimes due to its low-friction curve technology. This product provides a substantial upgrade for conveyor systems requiring horizontal directional changes, particularly in sectors where contamination prevention is essential.

$1,107.79 USD

More are expected on December 31, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 31, 2024 when ordered in

CURVE 240+ HOR AL 90° R500

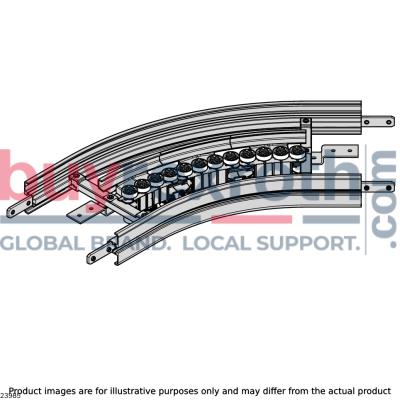

Roller curve horizontal AL VFplus 240 90°

Unpacked Weight: 5.284 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	5x 0,98
Actual chain length	2x 0,98
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	5.284
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	240
Dimension [A]	720
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
