LIFT-ROTATE UNIT HD2 B160*LT320 180 40

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

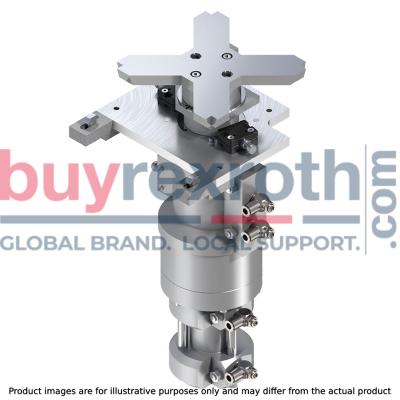

The Bosch Rexroth LIFT-ROTATE UNIT HD2 B160*LT320 180 40 (Material Number 3842525853) is a sophisticated handling component designed for precise manipulation of workpiece pallets within automated conveyor systems. This unit offers the capability to lift and rotate workpieces, ensuring they are always oriented correctly for subsequent processes. It features two turning angles on the Z axis—90° or 180°—allowing for versatile positioning that can be individually actuated to accommodate specific workpiece requirements. With an option to lift workpiece pallets either 40 mm or 90 mm above the transportation level, the HD2 B160*LT320 caters to different operational needs. The 40 mm version is ideal for rotating pallets directly above conveyor sections, whereas the 90 mm lift variant accommodates side-mounted components such as identification and data storage modules. This adaptability makes it a valuable asset in a variety of manufacturing and assembly environments. Furthermore, this lift-rotate unit is engineered to handle a maximum total mass moment of inertia of 0.65 kgm², which ensures stable and reliable operation even with substantial loads. Its robust construction allows for continuous use without requiring additional force application during operation. Overall, the Bosch LIFT-ROTATE UNIT HD2 B160*LT320 180 40 is designed to enhance efficiency and precision in material handling applications where orientation and positioning of workpieces are critical.
