UP10-31C-0-V-80-30/ CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

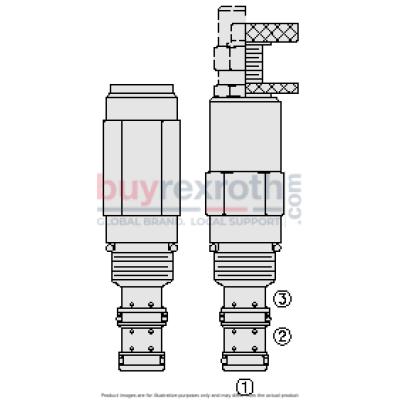

The Hydraforce 5621433V (5621433V) is a screw-in, cartridge-style remote sequence, pilot unloading valve, specifically designed for use in accumulator-type hydraulic systems. Known as the UP10-31, this valve offers optional fixed unload/reload pressure ratios of 60%, 70%, or 80%. In its default state, the UP10-31 effectively blocks flow from port 2 to port 3. When a predetermined pressure level is reached at port 1, the spool shifts to permit flow between these ports. The spring chamber's venting at port 3 ensures that any back pressure directly influences the valve setting on a one-to-one basis. If the pressure at port 1 falls below the established reload value ratio, the valve automatically closes to block flow from port 2 to port 3 once more. This product features adjustments that cannot be backed out of the valve and prohibits springs from reaching a solid state. It also provides optional spring ranges up to 207 bar (3000 psi). Constructed with a hardened spool and cage, it promises long-lasting durability and fits industry-common sizes for ease of integration into existing systems.
