HSV10-28-10HT-U-12EG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

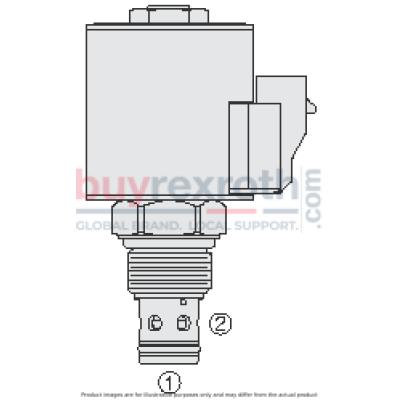

The Hydraforce 5525023 (5525023) is a high-performance hydraulic cartridge valve, specifically the HSV1028X model. This valve is engineered as a 2-way, piloted, poppet-type, normally closed, bidirectional screw-in device. It excels in applications that demand low internal leakage in both directions and is ideal for serving as a load-holding or blocking valve. The HSV1028X operates by allowing flow in both directions when energized and blocks flow when de-energized. Additionally, it features a manual override operation which is primarily for emergency use rather than continuous duty; this function involves seating the manual override pin in the lower detent groove for normal operation or manipulating the knob for increased flow during emergencies. This valve is equipped with a continuous-duty rated coil and a hardened seat that ensures longevity and minimal leakage. It offers optional coil voltages and terminations to suit various operational needs. The efficient wet-armature construction enhances its performance while ensuring compatibility with different voltage cartridges. For durability in harsh environments, the HSV1028X features waterproof E-Coils rated up to IP69K and unitized, molded coil designs. Its solenoid tubes and coils are proven to withstand up to 960 hours of salt spray, underscoring its robustness. All HyPerformance products like this model adhere strictly to NFPA specification T2.6.1, with rigorous testing at verification levels of 90% and an assurance level of 99%.
