HSV10-28-0-U-24EJ SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

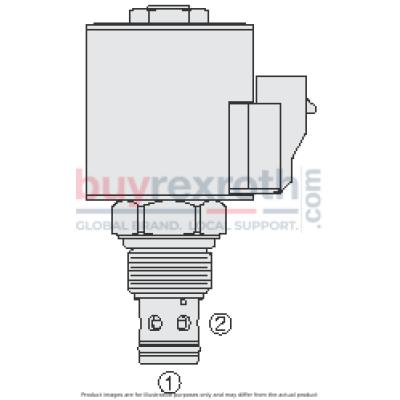

The Hydraforce 5524910 (Material Number 5524910) is a robust hydraulic cartridge valve designed for high-pressure applications requiring minimal internal leakage in both directions. Known as the HSV1028X, this 2-way, piloted, poppet-type, normally closed, bidirectional valve excels in load holding or blocking roles within hydraulic systems. It features a manual override function that allows for emergency operation by pushing down and rotating the knob 180 degrees; however, this is not intended for continuous use. The HSV1028X operates by allowing flow in both directions when energized and blocks flow when de-energized. Its design includes a hardened seat to ensure durability and maintain low leakage over time. The valve also boasts continuous-duty rated coils and offers optional coil voltages and terminations to accommodate different system requirements. Its efficient wet-armature construction enhances its performance while being voltage interchangeable. For environments demanding rigorous standards, the HSV1028X comes with waterproof E-Coils rated up to IP69K, making it suitable for outdoor or harsh conditions. The unitized, molded coil design adds to its robustness. Additionally, it meets stringent endurance criteria with a 960-hour salt-spray rating on its solenoid tubes and coils. This valve adheres to NFPA specification T2.6.1, ensuring reliability with a testing verification level of 90% and an assurance level of 99%.
