HSV10-28M-0-HV-0 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

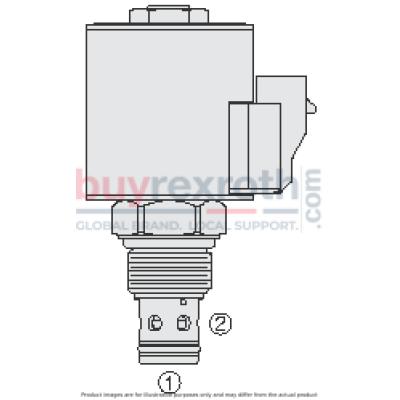

The Hydraforce 5524895HV (5524895HV) is a robust hydraulic cartridge valve from the HyPerformance product line, specifically designed for high-pressure applications. This 2-way, piloted, poppet-type valve is normally closed and bidirectional, serving primarily as a load holding or blocking valve. It exhibits low internal leakage in both directions, making it highly efficient for various hydraulic systems. The operation of the HSV1028X model allows flow in both directions when energized and blocks flow when de-energized. A notable feature of this valve is its manual override operation. In normal conditions, the manual override pin must be seated in the lower detent groove. For manual shifting, the operator can push down on the knob and rotate it 180 degrees in either direction. Additionally, pulling on the knob when manually actuated allows for increased flow. However, this manual override is designed for emergency use rather than continuous-duty operations. Among its technical features are a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The valve offers optional coil voltages and terminations to accommodate diverse system requirements. Its efficient wet-armature construction along with voltage interchangeable cartridges adds to its versatility and reliability in demanding environments. Furthermore, the waterproof E-Coils are rated up to IP69K with unitized molded coil design ensuring durability against harsh conditions. The solenoid tubes and coils are also impressive with a 960-hour salt-spray rating. This valve adheres strictly to NFPA specification T2.6.1 with rigorous testing at a verification level of 90% and an assurance level of 99%, underscoring its reliability and performance standards suitable for high-demand hydraulic applications.
