EP20-S38-0-V-40 LOGIC ELEMENT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

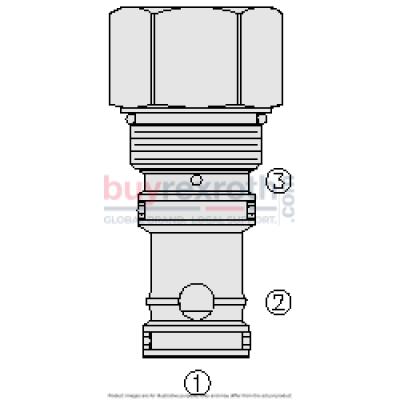

The Hydraforce 5287701 (5287701) is a highly efficient hydraulic directional element known for its robust performance in controlling fluid flow in hydraulic systems. Designed as a screw-in cartridge style valve, the EP20S38 model stands out due to its bidirectional blocking poppet type mechanism. This feature allows it to effectively block flow from port 1 to 2 or vice versa until the pressure at either of these ports surpasses the combined pressure at port 3 along with the bias spring force. In scenarios where there is no pressure at port 3, the valve permits flow from port 1 to 2 or from 2 to 1 after overcoming the bias spring force. The EP20S38 model is engineered with a balanced area ratio of 1:1 between ports 1 and 2, and a ratio of 1:2 between ports 1 or 2 and port 3, enhancing its functionality and adaptability across various applications. This design ensures minimal pressure drop across the valve, promoting efficient operation and energy conservation in hydraulic systems. Additionally, it features an industry-common cavity which simplifies installation and maintenance while allowing for multiple function applications. This versatility makes it an ideal choice for diverse hydraulic applications requiring reliable directional control of fluid flow.
