EP10-S38-0-N-160 LOGIC ELEMENT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

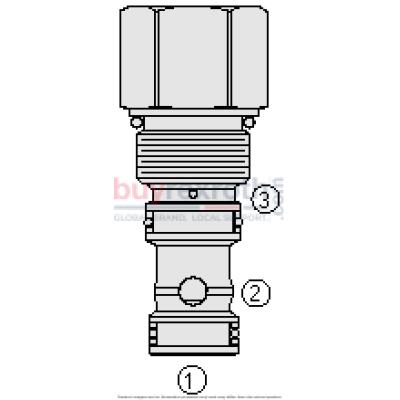

The Hydraforce EP10-S38-0-N-160 (5282303) is a high-performance, screw-in, cartridge-style hydraulic directional element designed for precise fluid control in hydraulic systems. This spring-biased poppet valve effectively blocks or allows flow between port 1 and port 2 based on the pressure conditions at these ports relative to a bias spring and an additional port (port 3). The valve remains closed until the pressure at either port 1 or port 2 surpasses the combined pressure of port 3 and the bias spring. In its default state, the area ratios of ports are maintained at 1:1 between ports 1 and 2, and at 1:2 from either of these ports to port 3. This model boasts several features that enhance its utility across multiple applications. It offers a low pressure drop and is compatible with industry-standard cavity VC10S3, which simplifies installation processes. The EP10-S38-0-N-160 can handle pressures up to 345 bar (5000 psi) and operates efficiently across a broad temperature range (from -40°C to +100°C with Buna N seals, up to +204°C with Fluorocarbon seals, and from -54°C to +107°C with Polyurethane seals), making it versatile for various operating environments. The unit weighs approximately 0.15 kg (0.32 lb) and has an internal wetted surface area of about 116 cm² (18.0 in²). For maintenance or replacement needs, seal kits like SK10S3XMM are available along with installation instructions. Furthermore, it supports a wide range of fluid viscosities from 7.4 to 420 cSt and maintains performance within maximum operating contamination levels specified by ISO standards (20/18/14 per ISO 4406). This directional element is an integral component for ensuring reliable operation and control in sophisticated hydraulic systems.
