EV10-S34-10T-N-40 VENTED ELEMENT
Manufacturer: Hydraforce
Material #: 5282232
Model : EV10-S34-10T-N-40 VENTED ELEMENT
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

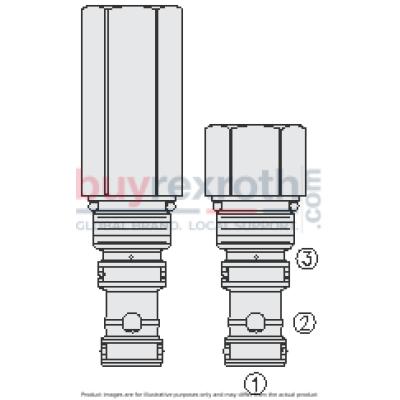

The Hydraforce 5282232 (5282232) is a screw-in, cartridge-style, spool-type hydraulic directional element specifically designed for smooth and efficient hydraulic operations. The EV10S34 model features a spring-biased blocking valve mechanism that shifts to allow flow from port 1 to port 2 only when port 3 is vented. This action creates a pressure drop across the internal orifice which exceeds the spring force, facilitating the vent-to-open functionality of the valve. This product is notable for its low pressure drop and smooth shift transition, making it highly suitable for various applications requiring precise control over fluid direction and flow. Additionally, the EV10S34 incorporates an industry-common cavity which enhances its versatility and potential for multiple function applications within hydraulic systems.
$129.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 19, 2027
| Ratings: | Pressure Ratings Pressure rating: 345 bar (5000 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 164 ml/min (10 in³/min) At 3000 psi [207 bar] Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-S3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION EV10-S34CD-H-J-R C Adaptor Option C BLANK Standard Cap C T Tall Cap D Cage Option D BLANK Standard Cage D G Metering (staggered holes) H Line Body H 0 No Body J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 10 10 psi Bias Spring R 40 40 psi Bias Spring R 80 80 psi Bias Spring R 110 110 psi Bias Spring R 160 160 psi Bias Spring R 230 230 psi Bias Spring |
