***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

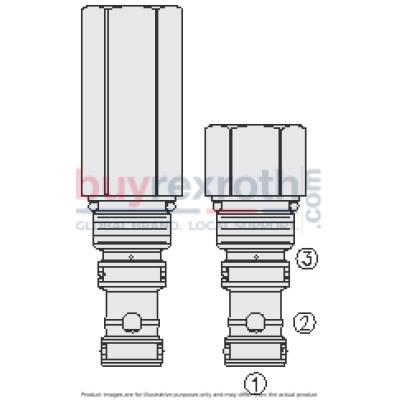

The Hydraforce EV10-S34 (5282200) is a high-performance, screw-in, cartridge-style, spool-type hydraulic directional valve designed for precise fluid control in various hydraulic systems. This model operates as a spring-biased blocking valve that shifts to allow flow from port 1 to port 2 only when a pressure drop across the internal orifice exceeds the spring force, with port 3 vented. Its vent-to-open design facilitates smooth and efficient operation. The EV10-S34 is notable for its low pressure drop and smooth shift transition, ensuring optimal performance and reliability. It is compatible with industry-common cavity VC10S3, making it versatile for integration into existing systems without extensive modifications. The valve supports a wide range of operating temperatures depending on the seal material used: from -40 to +100°C with Buna N seals, -26 to +204°C with fluorocarbon seals, and -54 to +107°C with polyurethane seals. Additionally, the EV10-S34 can handle pressures up to 345 bar (5000 psi) and is suitable for mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. It ensures minimal internal leakage, not exceeding 164 ml/min at 3000 psi. The unit's weight varies slightly between models; the EV10S34X variant weighs approximately 0.14 kg (0.3 lb), while the Ev10s34tx variant weighs about 0.27 kg (0.6 lb). This valve's robust design and multiple seal options make it highly adaptable for diverse applications requiring reliable directional control of hydraulic flow in demanding environments.
