EHPR08-33-0-V-24ER CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

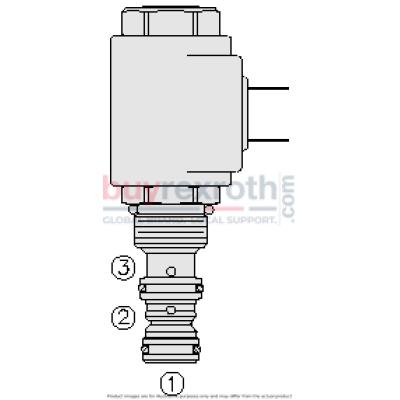

The Hydraforce 5278301V (5278301V) is a sophisticated EHPR0833X model, designed as a direct-acting, spool-type, proportional, pressure reducing and relieving valve. This product stands out due to its capacity to regulate pressure proportionally to the electrical current input. It allows free flow from port 1 to port 3 when the coil is not energized. When the coil is activated, it connects port 2 to port 1, and increasing the current enhances the controlled reduced pressure in a proportional manner. A distinctive feature of this valve is its ability to relieve excess pressure from port 1 to port 3 if it surpasses the coil-induced setting. The EHPR0833X model operates efficiently with both 12 and 24-volt coils and offers an optional manual override for enhanced control flexibility. The manual override function engages at approximately 2¼ turns, building up pressure at about 11.7 bar (170 psi) per turn. This model also boasts an industry-common cavity which facilitates standardization and interchangeability. Additionally, for environments requiring robust durability against moisture ingress, optional waterproof E-Coils rated up to IP69K are available ensuring reliable performance in demanding conditions. This valve’s design not only provides precise control over hydraulic pressures but also integrates seamlessly into various hydraulic systems due to its standard cavity configuration. The Hydraforce 5278301V is particularly suitable for applications requiring precise pressure adjustments and reliability in both mobile and industrial hydraulics.
