EHPR08-33-0-N-24DG CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

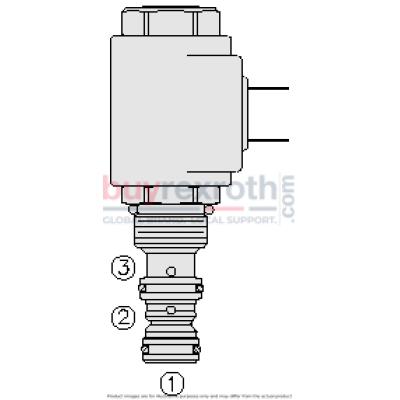

The Hydraforce 5278124 (5278124) is a sophisticated direct-acting, spool-type, proportional, pressure reducing relieving valve designed for versatile fluid power applications. This model, EHPR0833X, operates by allowing free flow from port 1 to port 3 when no electrical current is applied to its coil. Upon energization of the coil, it connects port 2 to port 1 and enables control of reduced pressure proportionally with the increase in current. This feature allows for precise management of hydraulic pressures in various systems. A notable capability of the EHPR0833X is its pressure relief function; if the pressure at port 1 exceeds the coil-induced setting, excess pressure is automatically relieved to port 3. This safety feature ensures stable operation under varying pressures and prevents potential damage due to overpressure. Additionally, this model includes optional features that enhance its functionality and adaptability in different environments. It offers both 12 and 24-volt coils as standard options and an optional manual override for additional control flexibility. The valve is engineered with an industry-common cavity that simplifies installation processes across different systems. For environments requiring robust performance, the EHPR0833X can be equipped with optional waterproof E-Coils rated up to IP69K, ensuring reliable operation even under extreme conditions involving dust and high-pressure water jets. The manual override operation of this model engages at approximately 2¼ turns and builds pressure incrementally at about 11.7 bar (170 psi) per turn, providing precise manual control when needed. Overall, the Hydraforce EHPR0833X offers a reliable solution for managing hydraulic pressures accurately in a variety of applications while ensuring safety through its relieving capabilities.
