MP10-20T-0-V MANUAL PULL VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

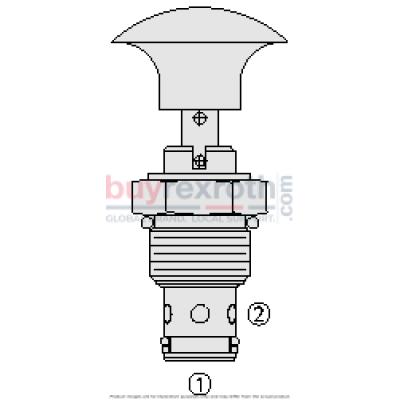

The Hydraforce 5271201 (5271201) is a precision-engineered hydraulic valve designed for robust and efficient directional control in hydraulic systems. This model, known as the MP1020, features a 2-way, manual pull-to-open mechanism with a spring return that ensures the valve quickly returns to its neutral position upon release. It is constructed as a screw-in cartridge style valve, making it easy to install and maintain within various setups. In its default state, the MP1020 blocks flow from ports 2 to 1 until manually actuated. This blocking is critical for applications requiring precise control over fluid flow direction and timing. The valve is specifically designed with a hardened seat which significantly extends its service life while minimizing leakage. This durability is crucial in maintaining system integrity and efficiency. An optional unique feature of the MP1020 is its 90-degree rotational lock, which provides positive holding in the open position, enhancing operational safety and reliability. This lock can be disengaged by a simple 90-degree turn, allowing the device to spring back to the closed position seamlessly. The design also accommodates up to 180 psi (12.4 bar) of backpressure at port 1 without opening, thanks to its bias spring configuration. This feature makes it suitable for applications where varying pressure levels are anticipated but must not affect valve operation until desired. Overall, the Hydraforce MP1020 offers reliable performance with customizable options like the rotational lock to meet specific operational needs, ensuring it fits seamlessly into diverse hydraulic systems while providing effective flow control and enhanced operational safety.
