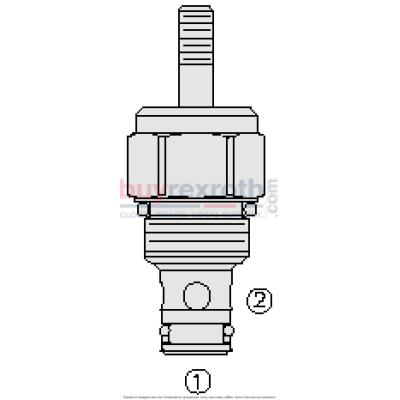

The Hydraforce MP08-20J-0-N (5270805) is a robust and versatile manual cartridge valve, designed primarily for directional hydraulic control. This 2-way, pull-to-shift valve features a spring return mechanism that securely blocks flow from port 2 to port 1 in its neutral position until manually actuated. Upon release, it automatically returns to this default state. The valve is engineered to handle a back pressure of up to 180 psi (12.4 bar) at port 1, which directly acts on the spring, making port 1 suitable only as a tank port. Constructed with a hardened seat, the MP08-20J-0-N ensures long life and minimal leakage while maintaining closure up to its specified backpressure limit. Its compact design fits industry-common cavity specifications, making it easily integrable into various hydraulic systems without necessitating extensive modifications. The valve operates effectively within a fluid temperature range of -40°C to +100°C (-40°F to +212°F) when equipped with Buna N seals, extending up to +204°C (400°F) with fluorocarbon seals and +107°C (225°F) with polyurethane seals. It also supports a wide range of fluid viscosities from 7.4 to 420 cSt and is capable of managing maximum operating contamination levels as specified by ISO 4406 standards. With an internal leakage maximum of only 0.25 ml/min at full pressure (207 bar or 3000 psi), the MP08-20J-0-N combines reliability with performance efficiency in hydraulic applications requiring precise control over flow direction and pressure management.
