MP08-30K-6T-V MANUAL PULL VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

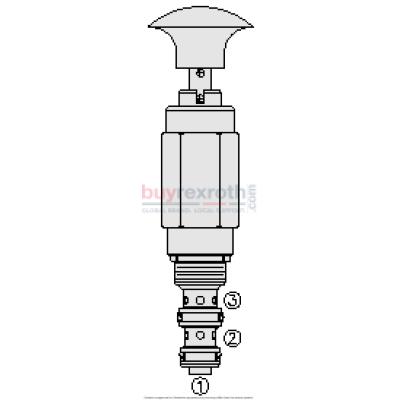

The Hydraforce 5270342V (5270342V) is a robust 3-way, manual pull-to-shift, spring return directional hydraulic cartridge valve designed for efficient control over hydraulic flow in various applications. This valve features a straightforward operation mechanism: in its neutral position, it directs flow from port 2 to port 1 while blocking port 3. When actuated by pulling, it reverses the direction, allowing flow from port 3 to port 2 and blocking port 1. The spring chamber's venting at port 1 facilitates this operation. An optional unique pull and rotate feature enhances the functionality of the MP0830X model by allowing the valve to hold a positive actuated position securely. This requires a 90-degree rotation to lock the valve in the pulled position. To reset to its neutral position, a slight pull and another 90-degree turn are necessary from the locked position. Constructed with durability in mind, the MP0830X includes a hardened spool and cage which ensure an extended operational life even under rigorous conditions. It operates efficiently with pressures up to 14 bar (200 psi) at port 1. However, it is critical to note that series operation of this valve is prohibited as pressure at port 1 can directly influence the spool and spring, with port 1 intended solely as a tank port. Its compact design adheres to industry-common cavity specifications, making it suitable for integration into various hydraulic systems without requiring extensive modifications. The optional rotational lock further adds to its versatility, catering to specific application needs where maintaining a fixed position is crucial.
