PD10-44-2B-NS-170 PILOTED 2-WAY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

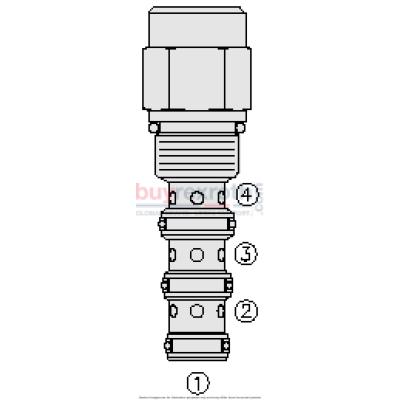

The Hydraforce 5262673NS (5262673NS) is a high-performance hydraulic directional valve designed for sophisticated fluid control in hydraulic systems. The PD1044 model is a screw-in, cartridge style, pilot-operated, spool type valve that offers precise operation and reliability. In its neutral position, the valve effectively blocks flow from port 2 to port 3, ensuring stable system conditions when no actuation is required. Upon receiving a remote pilot signal at port 1, the spool shifts to allow bidirectional flow between ports 2 and 3, facilitating versatile application in various hydraulic circuits. This model features a spring chamber vented to port 4, which is internally o-ring sealed from the cartridge flow paths. Notably, any pressure present on port 4 influences the pilot pressure required on a direct 1:1 basis and must be considered alongside the bias spring value for accurate system calibration. The PD1044 is engineered with a hardened spool and cage to enhance durability and extend operational life even under demanding conditions. Additionally, its design conforms to an industry common cavity, making it compatible with standard installations and replacements in multiple applications without the need for extensive modifications or custom parts.
