PD16-44-0-V-110 PILOTED 2-WAY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

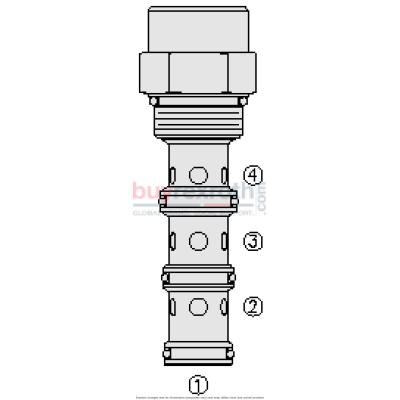

The Hydraforce 5262520V (5262520V) is a high-performance hydraulic directional valve designed for robust and precise control in fluid power applications. The PD1644 model, known for its screw-in, cartridge style, ensures easy installation and maintenance. This pilot-operated, spool-type valve operates by blocking flow from port 2 to port 3 in its neutral position. Upon receiving a remote pilot signal at port 1, the valve's spool shifts to allow bidirectional flow between these ports. The valve's functionality is enhanced by the venting of the spring chamber to port 4, which is internally O-ring sealed to prevent leakage from the cartridge flow paths. Additionally, the pressure at port 4 influences the pilot pressure required for operation; this pressure adds directly to the bias spring value, ensuring precise control under varying conditions. The PD1644 features a hardened spool and cage that significantly extend its operational life even under harsh conditions. Its design incorporates an industry-common cavity which facilitates compatibility with various hydraulic systems and simplifies integration. Optional sealed pilot configurations offer further customization to meet specific application requirements, enhancing the valve's versatility across different operational settings.
