SV12-28-0-N-12EY SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

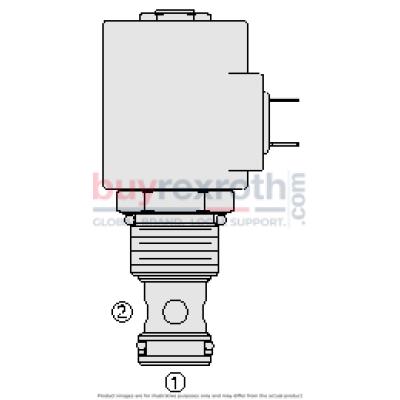

The Hydraforce 5042148 (5042148) is a solenoid-operated, 2-way, normally closed, bidirectional, screw-in hydraulic cartridge valve. This valve is specifically designed to serve as a load holding or blocking valve in various applications requiring minimal internal leakage in both directions. It boasts a continuous-duty rated coil and a hardened seat that ensures long life and maintains low leakage levels, enhancing the performance and reliability of the system it is integrated into. The 5042148 model features efficient wet-armature construction and cartridges that are voltage interchangeable, which allows for flexibility in usage across different systems with varying voltage requirements. Additionally, this model supports optional coil voltages and terminations to accommodate diverse operational needs. The unitized, molded coil design of the 5042148 contributes to its robustness and durability in challenging environments. It also offers a manual override option which can be crucial during maintenance or emergency interventions. For applications demanding higher protection against moisture and dust, there are optional waterproof E-Coils available, rated up to IP69K, ensuring the valve's performance in wet conditions. The design of this valve also emphasizes cost-effectiveness through its efficient cavity design. This combination of features makes the Hydraforce 5042148 an adaptable and reliable choice for hydraulic systems requiring precise control over flow and pressure.
