SV10-40Y-6T-N-115AP SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

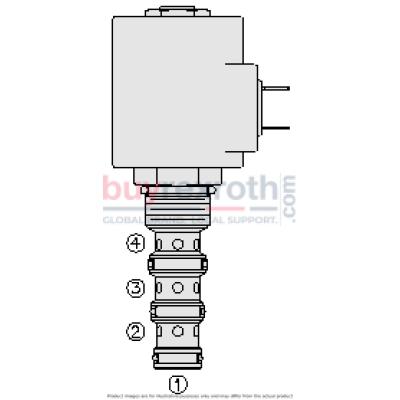

The Hydraforce 5033475 (5033475) is a solenoid-operated, 4-port, 3-position, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This versatile valve facilitates directional control of fluid flow between ports, enhancing operational flexibility and system efficiency. When de-energized, the SVX model allows flow from port 1 to port 2 and from port 3 to port 4. Upon energization, the valve's spool shifts to open flow from port 1 to port 4 and from port 3 to port 2. Key features of the Hydraforce 5033475 include a continuous-duty rated coil and a hardened precision spool and cage which ensure durability and a long service life even under demanding conditions. The unit's efficient wet-armature construction contributes to its reliable performance. The design includes interchangeable cartridges across different voltages, which simplifies maintenance and increases system adaptability. Moreover, all ports on the Hydraforce 5033475 can be fully pressurized, maximizing functionality within hydraulic circuits. The valve also boasts a unitized, molded coil design that aids in reducing installation complexities and improving resilience. An optional manual override feature provides additional operational control which can be crucial during maintenance or emergency situations. Furthermore, optional waterproof E-Coils are available for this model; these are rated up to IP69K for enhanced protection against dust and water ingress in harsh environments. The industry-common cavity design of the Hydraforce 5033475 ensures compatibility with standard configurations, making it an ideal choice for integration into various hydraulic applications requiring robust control solutions.
