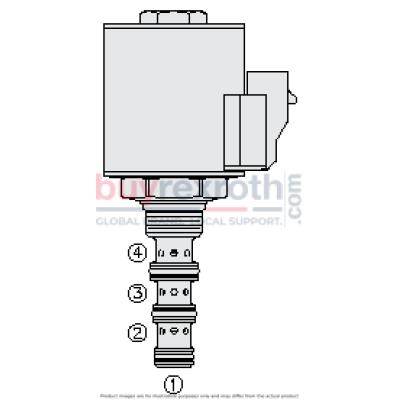

The Hydraforce SV58-40-0-P-00 (5007004) is a high-performance solenoid cartridge valve designed for precise hydraulic control in high-pressure applications. This direct-acting, spool-type valve features four ports and operates by shifting its spool to alter flow paths when energized and deenergized. Specifically, it allows flow from port 3 to port 2 and from port 4 to port 1 when deenergized; upon energization, the flow switches from port 3 to port 4 and from port 2 to port 1, with all ports open at crossover. Constructed with durability in mind, it includes a hardened precision spool and cage that ensure longevity even under demanding conditions. The unit's continuous-duty rated coil is designed for efficient performance, while its compact size facilitates easy integration into various systems. The valve offers optional coil voltages and terminations to accommodate different system requirements and also features efficient wet-armature construction. Additional customization options include waterproof E-Coils rated up to IP69K for enhanced protection against environmental elements. The interchangeable voltage cartridges add versatility, making this valve suitable for a wide range of operational setups. Its design also incorporates steel with hardened work surfaces that are zinc-plated for corrosion resistance. For installation, the SV58-40-0-P-00 uses an 08-size-4-way cavity (VC084) and specifies cartridge installation torque between 25.8 to 28.5 Nm and coil nut torque between 5.4 to 6.8 Nm. Seal kits and instructions are available for maintenance, along with optional housings in the form of 084w valve bodies and two sizes of coils (size D and E) to suit different configurations or replacements needs.
