SV10-40A-0-V-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

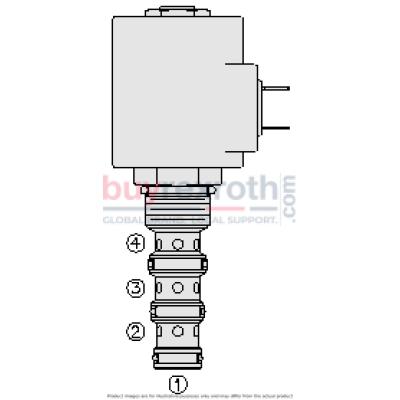

The Hydraforce 5033006V (5033006V) is a solenoid-operated, 4-port, 3-position, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for versatile fluid control in hydraulic systems. This model features a continuous-duty rated coil and a hardened precision spool and cage, ensuring durability and a long operational life even under rigorous conditions. The efficient wet-armature construction of the SVX series allows for reliable performance with minimal maintenance. When de-energized, the SVX allows flow from port 1 to port 2 as well as from port 3 to port 4. Energizing the valve shifts the spool to open flow from port 1 to port 4 and from port 3 to port 2, facilitating flexible control over fluid direction and flow within the system. This valve's adaptability makes it suitable for a wide range of applications requiring precise control of hydraulic fluids. Additional features include optional coil voltages and terminations to suit various electrical requirements, unitized molded coil design for robustness, and manual override options enhancing operational flexibility. The valve also offers optional waterproof E-Coils rated up to IP69K for enhanced protection against dust and water ingress in harsh environments. All ports on this valve can be fully pressurized, maximizing functionality in complex hydraulic circuits. The industry-common cavity design ensures compatibility with standard cavities, simplifying installation and replacement processes.
