SV10-47D-8T-N-12DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

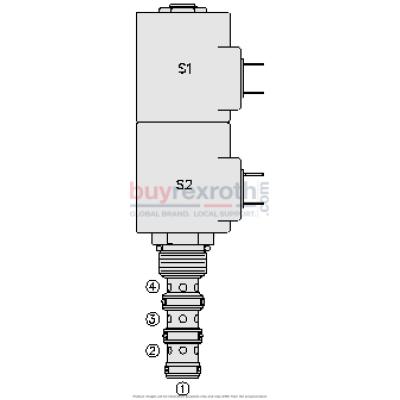

The Hydraforce SV10-47D-8T-N-12DG (5028199) is a high-performance solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve designed for robust and efficient control in hydraulic systems. This valve operates by blocking the inlet port when de-energized, allowing flow from ports 2 and 4 to port 1. When coil 1 is energized, it directs flow from port 3 to port 4 and from port 2 to port 1; energizing coil 2 shifts the flow from port 3 to port 2 and from port 4 to port 1. It features a continuous-duty rated solenoid and a hardened precision spool and cage that ensure long life and reliability. The SV10-47D-8T-N-12DG offers optional coil voltages and terminations, a manual override option, and optional waterproof E-Coils that are rated up to IP69K for enhanced durability against environmental conditions. Its efficient wet-armature construction allows all ports to be fully pressurized. Additionally, the cartridges are voltage interchangeable with unitized, molded coil designs that fit industry common cavities. This valve is capable of handling pressures up to 250 bar (3625 psi) with proof pressures reaching up to 344 bar (5000 psi) and burst pressures up to an impressive 779 bar (11300 psi). It supports a wide range of fluid temperatures depending on seal material—from -40°C (-40°F) with Buna N seals up to +204°C (+400°F) with fluorocarbon seals. The valve’s design ensures minimal internal leakage under maximum pressure conditions, enhancing system efficiency. Designed for ease of installation in various hydraulic applications, the SV10-47D-8T-N-12DG fits into a VC104 cavity without orientation restrictions. This versatility along with its robust performance specifications makes it ideal for demanding hydraulic tasks where precision control of fluid handling is critical.
