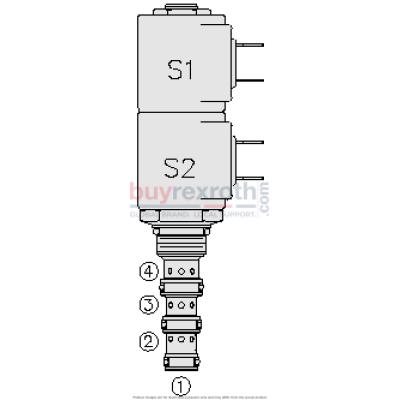

The Hydraforce 5008203A (5008203A) is a solenoid-operated, 4-port, 3-position, direct-acting spool type screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This model operates by blocking the inlet port 3 when de-energized while allowing flow from ports 2 and 4 to port 1. Energizing coil 1 permits flow from port 3 to port 4 and from port 2 to port 1. Similarly, activating coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. Key features of the Hydraforce 5008203A include a continuous-duty rated solenoid and a hardened precision spool and cage that enhance its durability and lifespan. The valve offers optional coil voltages and terminations to accommodate varying system requirements, along with a manual override option for additional operational control. Its optional waterproof E-Coils are rated up to IP69K, ensuring reliable performance in harsh environmental conditions. The efficient wet-armature construction contributes to its robust functionality. Importantly, all ports on this valve can be fully pressurized, enhancing its versatility in application. The cartridges are voltage interchangeable which facilitates ease of use across different systems with varying power supplies. Its unitized, molded coil design along with an industry-common cavity ensures that the valve remains compact yet effective for a wide range of hydraulic applications.
