SV10-47D-6T-N-12DL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

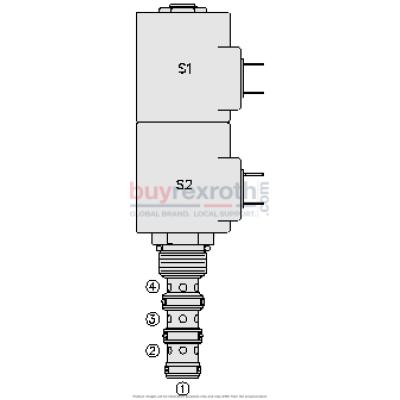

The Hydraforce 5028027 (5028027) is a solenoid-operated, 4-port, 3-position, direct-acting spool-type screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve features a hardened precision spool and cage that ensure long life and reliability under continuous duty operations. Its operation is straightforward: when de-energized, it blocks the inlet port while allowing flow from ports 2 and 4 to port 1. Energizing coil 1 permits flow from port 3 to port 4 and from port 2 to port 1, whereas energizing coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. This model boasts several key features enhancing its versatility and performance in various applications. It offers optional coil voltages and terminations, catering to different system requirements. The manual override option provides additional control flexibility, essential for maintenance or emergency interventions. For environments requiring rigorous standards, the optional waterproof E-Coils are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Moreover, its efficient wet-armature construction allows for all ports to be fully pressurized without compromising performance. The cartridges are voltage interchangeable which facilitates easy adaptation across different systems with varying electrical standards. The unitized, molded coil design contributes to the robustness of the valve assembly making it suitable for challenging industrial applications. Finally, it fits an industry-common cavity which simplifies installation and integration into existing hydraulic systems without the need for extensive modifications or custom parts.
