SV10-42M-6T-N-12DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

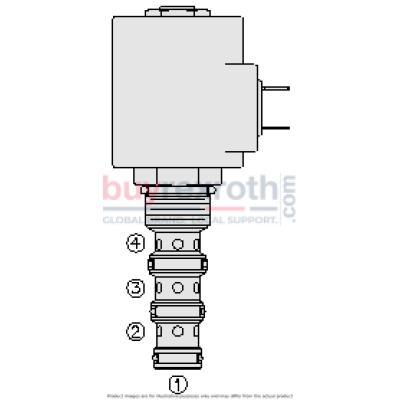

The Hydraforce 5027629 (5027629) is a solenoid-operated, 4-port, 2-position, direct-acting spool-type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. The operation of the valve is straightforward: when de-energized, it allows flow from port 3 to port 4 and from port 2 to port 1. Upon energization, the spool shifts to block all ports, effectively stopping flow through the valve. This feature makes it suitable for applications requiring precise control over fluid handling and flow direction. The valve is engineered with a continuous-duty rated coil and a hardened precision spool and cage which enhances its durability and extends its operational life. It also boasts efficient wet-armature construction and cartridges that are voltage interchangeable, allowing for flexibility in system design and upgrades without complete overhauls. The unitized, molded coil design adds robustness to the unit. Additionally, the Hydraforce 5027629 offers optional features such as different coil voltages and terminations to accommodate varying operational requirements. There is also a manual override option for situations requiring manual intervention in the system. For environments demanding higher protection against moisture ingress, optional waterproof E-Coils rated up to IP69K are available. This valve utilizes an industry-common cavity which simplifies installation processes and ensures compatibility with standard components in hydraulic systems. With all ports capable of being fully pressurized, the Hydraforce 5027629 provides versatile application capabilities across various hydraulic operations where reliable performance under continuous duty is essential.
