SV10-40-0-N-24EG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

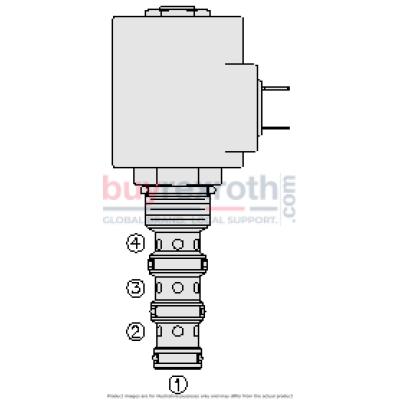

The Hydraforce 5027044 (5027044) is a high-performance, solenoid-operated hydraulic cartridge valve designed for robust and efficient control within hydraulic systems. This direct-acting, spool-type valve features a unique configuration with four ports and two positions, making it versatile for various fluid control applications. In its default state when de-energized, the SV1040X configuration allows fluid flow from port 3 to port 2 and from port 4 to port 1. Upon energization, the spool shifts strategically to connect port 3 to port 4 and port 2 to port 1, facilitating alternate flow paths essential for dynamic system requirements. This model is engineered with a continuous-duty rated coil and incorporates a hardened precision spool and cage that ensure durability and an extended operational life. It boasts efficient wet-armature construction which enhances its performance reliability under continuous usage. The unitized, molded coil design further underscores its robustness and suitability for demanding applications. Additionally, the Hydraforce 5027044 offers optional features such as different coil voltages and terminations, enhancing its adaptability across various electrical systems. Its all ports pressurization capability allows for flexible integration into complex hydraulic circuits without risk of leakage or pressure drop. For environments requiring rigorous standards, there is an optional waterproof E-Coil rated up to IP69K available, ensuring protection against ingress of dust and high-temperature high-pressure water jets. With an industry-common cavity design, this valve ensures compatibility with standard installations, simplifying replacement and maintenance processes. Moreover, a manual override option provides added operational flexibility, allowing manual control in situations where automated function may be compromised or during setup phases.
