SV10-28J-0-V-24DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

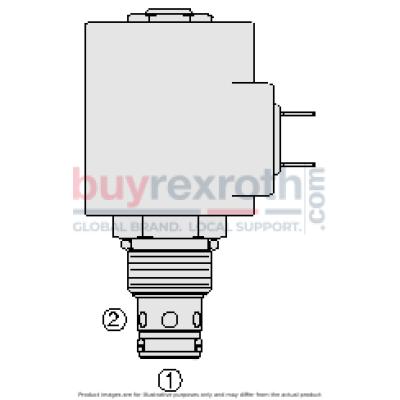

The Hydraforce 5024941V (5024941V) is a solenoid-operated, 2-way, normally closed, bidirectional, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load holding or blocking valve in various applications, with an emphasis on achieving low internal leakage in both directions. It features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The 5024941V offers flexibility in installation and operation through optional coil voltages and terminations. Additionally, the cartridges are voltage interchangeable which enhances adaptability across different systems. For user convenience, this model includes a manual override option. It also supports optional waterproof E-Coils that are rated up to IP69K for high-level protection against dust and water ingress, making it suitable for harsh environments. The valve utilizes an industry common cavity which facilitates standardization and interchangeability among similar systems.
