SV98-T40-0-N-24DJ SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

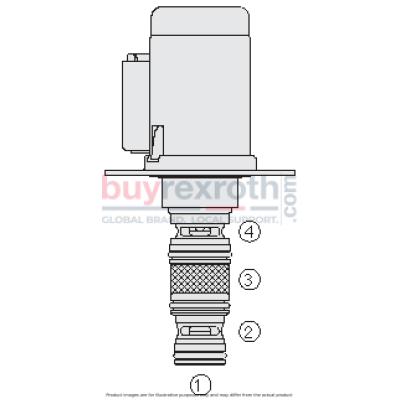

The Hydraforce 5019293 (5019293) is a direct-acting, spool-type, 2-position, 4-way directional control valve specifically designed for efficient hydraulic fluid management. As a drop-in, flange-mounted, cartridge type valve, it is crafted to facilitate easy installation and maintenance in various hydraulic systems. The valve features an integral waterproof coil which is built to withstand rigorous conditions without serviceability concerns. This model is equipped to operate with either 12 VDC or 24 VDC coils and offers several push-on termination options for enhanced adaptability. Functionally, the SV98T40 model operates effectively by allowing flow from port 3 to port 2 and from port 4 to port 1 when de-energized. Upon energization, the cartridge spool shifts strategically to enable flow from port 3 to port 4 and from port 2 to port 1. This switching capability underscores its utility in dynamic hydraulic applications where precise fluid control is necessary. Moreover, it's important that the pressure at the tank port (port 1) does not exceed 50 psi (3.4 bar) to ensure optimal performance of the valve. Designed with an economical mindset, this valve integrates essential features without compromising on quality or functionality. The robust construction paired with tested waterproofing measures of the coil makes it a reliable choice for general purpose hydraulic applications requiring durable and precise fluid direction control under varied environmental conditions.
