SV98-T40-0-N-12DY2AZ SOLENOID

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

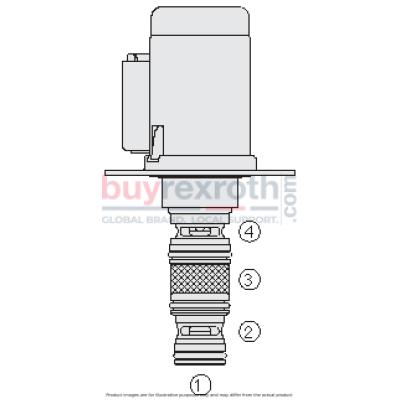

The Hydraforce 5019211 (5019211) is a versatile and efficient hydraulic directional control valve designed for optimal performance in fluid power applications. This direct-acting, spool-type, 2-position, 4-way valve is engineered as a drop-in, flange-mounted, cartridge type unit, making it suitable for streamlined integration into various hydraulic systems. The valve operates effectively with general-purpose hydraulic fluids, ensuring broad compatibility and ease of use across different equipment setups. The operational mechanics of the 5019211 are straightforward yet highly functional. In its deenergized state, the valve facilitates flow from port 3 to port 2 and from port 4 to port 1. Upon energization, the cartridge spool transitions to allow fluid flow from port 3 to port 4 and from port 2 to port 1, demonstrating its capability for flexible flow direction control based on system requirements. One critical operational note is that pressure at the tank port (port 1) should not exceed 50 psi (3.4 bar) to maintain proper function. This model comes equipped with an integral waterproof coil as standard—a significant feature enhancing its durability and suitability for environments where moisture exposure is possible. The waterproofing effectiveness of the coil has been thoroughly tested, ensuring reliable performance under varying conditions. Additionally, the valve offers options for either 12 VDC or 24 VDC coils along with several push-on termination choices, providing further customization to meet specific application needs without compromising on performance or safety standards.
