SV98-T40S-0-N-12DJ SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

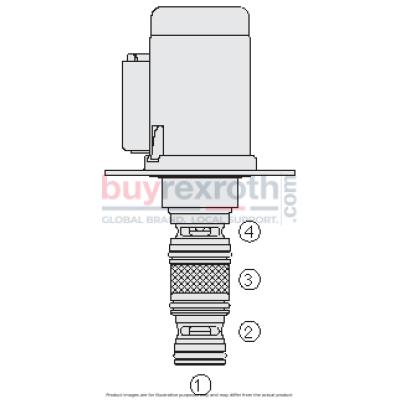

The Hydraforce 5019239 (5019239) is a high-performance hydraulic valve specifically designed for robust and efficient fluid control in various applications. This direct-acting, spool-type, 2-position, 4-way directional control valve stands out with its drop-in, flange-mounted, cartridge configuration tailored for use with general-purpose hydraulic fluids. It features an integral waterproof coil that is not serviceable, ensuring durability and reliability in demanding environments. Operationally, the SV98T40 model allows for precise control of hydraulic flows; when de-energized, it facilitates flow from port 3 to port 2 and from port 4 to port 1. Upon energization, the cartridge spool shifts seamlessly to allow flow from port 3 to port 4 and from port 2 to port 1. This functionality underscores its utility in systems requiring reliable directional control of fluid handling. The valve's design incorporates an economical drop-in style that simplifies installation while maintaining performance integrity. It supports both 12 VDC and 24 VDC coils and offers various push-on termination options to accommodate different system requirements. Additionally, the valve is engineered to ensure that pressure at the tank port (port 1) does not exceed 50 psi (3.4 bar), which is crucial for optimal operation of the valve. This Hydraforce model is particularly suitable for applications where space and reliability are critical considerations, providing a compact yet powerful solution for managing hydraulic flows effectively within a wide range of settings.
